CANchecked MFD32S Gen2 Data Display With Integrated Shiftlight Gen1

CANchecked MFD32S Multi-Function Gauge


Whether you're on the drag strip, circuit, or the street, having a quick and clear gear shift indicator ensures you're getting the most out of your car. The MFD32S features an intuitive shift light that lights up in ascending colors to signal the optimal shift point, so you don’t need to take your eyes off the road. The color sequence is fully customizable to match your preferences.

The display supports up to 64 values and works with all programmable ECUs that have CAN Bus or a serial interface. It also includes an 8GB SD card for data logging and offers 10 customizable display pages with drag-and-drop widgets.

Key Features:
- 3.2" capacitive touchscreen display
- Built-in shift light function
- 8GB SD card for data logging
- 1x PWM output & 1x digital output
- CAN Bus switching
- 10 fully configurable display pages
- CAN Bus & serial interface connectivity
- 4 analog inputs for 0-5V sensors (e.g., oil pressure, fuel pressure, EGT, boost pressure)
- Performance meter (e.g., 100-200 km/h measurement)
- Adjustable screen brightness & custom warning alerts

Display Views:
- 10 customizable pages
- Up to 17 widgets per page
- Drag-and-drop widgets with adjustable colors & layouts
- Multiple display styles, including digital numbers, bars, single pointers, speed displays, and more

Data Logging Options:
1. USB logging – Live sensor data logging via USB hub
2. SD card logging – Saves sensor data directly to SD card
3. Debug mode – Logs all CAN Bus data via USB
4. sDbg mode – Logs all CAN Bus data onto the SD card (CAN Bus Logger)

To analyze logs, simply upload files to the LogViewer software.

Supported ECUs:
The MFD32S supports all ECUs with a documented CAN Bus or serial interface. If your ECU is not listed, please contact CANchecked before purchasing.

Some compatible ECUs include:
- trijekt (Premium, Bee, trigifant)
- AEM, MaxxECU, LinkECU, Haltech v2, VEMS (with serial adapter)
- Ecumaster EMU Standard & Black, Microsquirt, EFIgnition, AIM Generic Protocol
- SCS Delta GDI4 & Delta, KMS MD35, Van Kronenburg
- VAG (Audi / VW / Seat) & many more

Haldex Control:
The MFD32S can control the VAG 4Motion Haldex unit (Gen 1, PQ34 platform) via CAN Bus without any additional conversion. A license activation is required.

What's in the box:

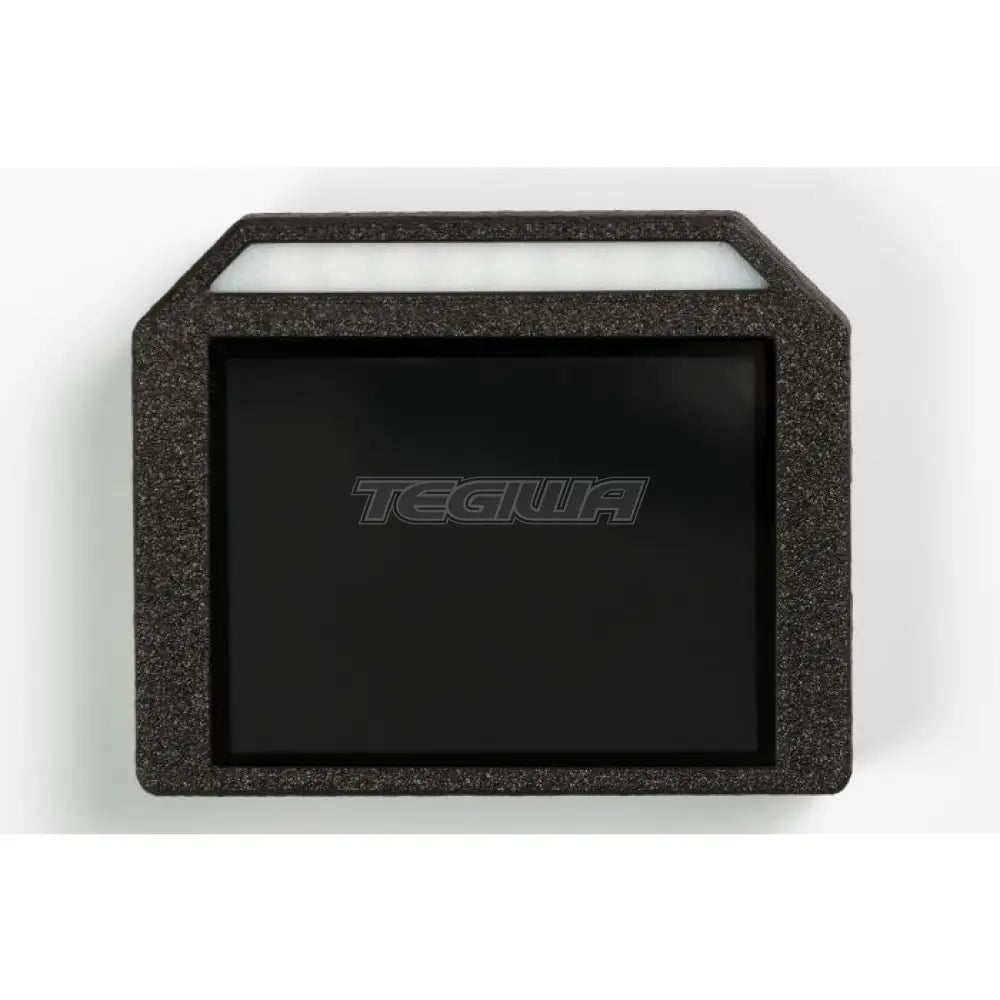

- CANchecked 3.2" Display with shift light
- Quickstart guide
- Connector A & B
- Pre-crimped cable
- Four mounting screws
- 8GB MicroSD Card (pre-installed) + MicroSD to SD adapter
- Display protection film
- 2x 1K1 pull-up resistors (for NTC)
- Extra pins for custom crimping

Installation manuals can be found on the CANchecked website.

Dimensions:
- Aperture: 69 x 54 mm
- Cover: 95 x 77 mm
- Depth: 24 mm

Setup & Configuration:
The MFD32S can be configured via the CANchecked website or the Display Setup Software (DSS). The online configurator allows users to create and export custom views for easy transfer to the SD card.

- Operating temperature: -10°C to 70°C
- Voltage supply: 12V standard (optional 5V or 24V)

Optional Accessories:
- EBC electronic boost controller
- 4.5 Bar / 65 Psi boost pressure sensor
- Haldex license
- Serial adapter (for VEMS & Ecumaster without CAN)
- Vehicle-specific integration kits
