| Series | DS-Series |
| Type | DH |
| Vehicle | Toyota Corolla AE86 83-87 |
| Fitment Notes | RWD W/Spindle - True Rear |
| Spring Rates (F/R) | 6/5kg/mm |
| Front Coilover | Aluminium camber adjustable pillowball top mounts (where available) |
| Rear Coilover | Pillowball only on the rear, or no top mounts |
| Camber Adjustment | Available: front camber adjustment |
| Kit Weight | 24kg |
| BC Remarks | WITH BC SPINDLE & TRUE COILOVER SETUP |
| Installation Notes | W/Spindle: the kit comes complete with wheel spindle. |
| BC Part Code | C-210-DS-DH |
| BC Part Number | 72164 |

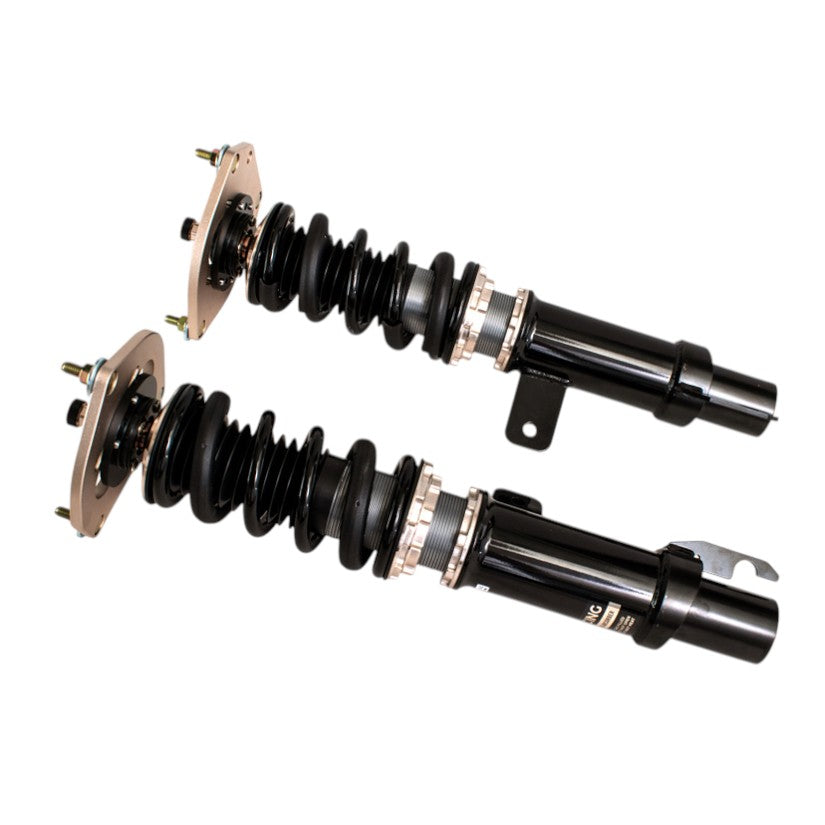

The BC Racing DS-Series takes the proven BC coilover platform a step further with separately adjustable compression and rebound damping, giving you finer control over your setup for fast road and track use.
The lower spring platforms are adjustable, allowing the car to be corner weighted for perfect balance and maximum tyre efficiency. The damper units are black chromed steel for superb durability even through the darkest of European winters, while aluminium components are anodised and steel lower mounts go through an electrophoretic deposition process followed by powder coating for outstanding corrosion resistance.
