| Series | BR-Series |
| Type | RH |
| Vehicle | BMW M3 E30 85-92 |
| Fitment Notes | RWD 51mm Strut Weld In True Rear Coilover |
| Spring Rates (F/R) | 6/5kg/mm |
| Front Coilover | Includes pillowball top mount |
| Rear Coilover | Includes pillowball top mount |
| Front Top Mount | Pillowball Top Mount |
| Rear Top Mount | Pillowball Top Mount |
| Damper | Sports |
| Camber Adjustment | Available: front camber adjustment |
| Kit Weight | 24kg |
| Installation Notes | Weld: the kit requires welding as part of the install. Strut xx.xmm: the figure quoted is the original front strut diameter. True rear coilovers: the rear suspension is true spring-over-damper. These place all of the forces the springs deal with on the mounting point of the damper. |
| BC Part Code | I-87-BR-RH |
| BC Part Number | 70526 |
| Also Fits | BMW M3 E30 85-92 (RWD Weld-in Integrated Rear) |
| Also Listed By BC As | BMW M3 E30 RWD (85-92) (WELD-IN) (INTEGRATED REAR) |

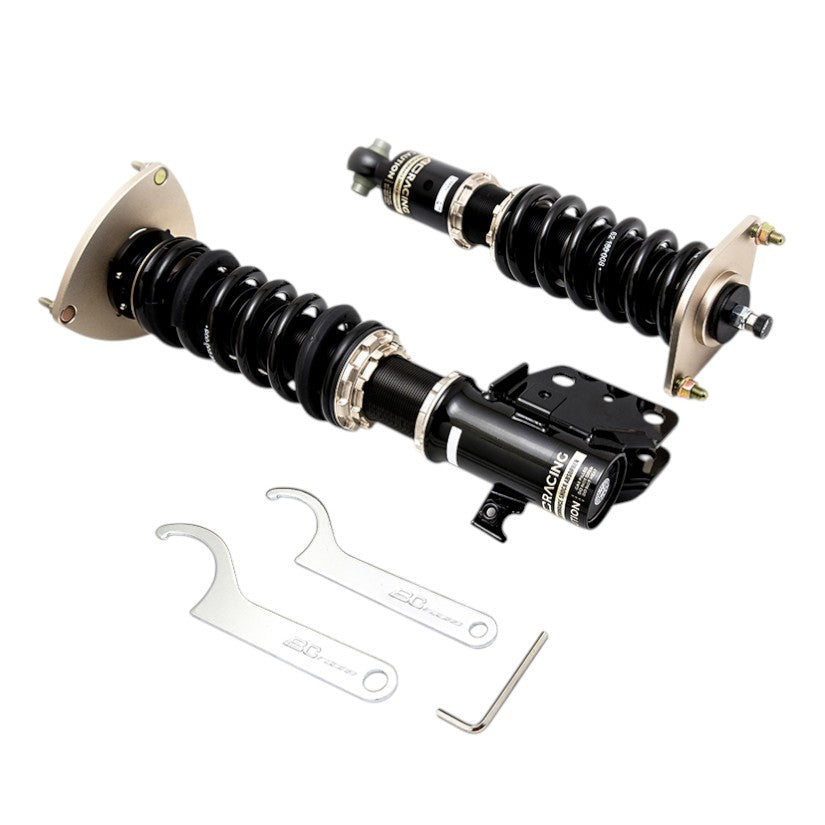

The BC Racing BR-Series is the go-to coilover for fast road and track use. The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity, reducing peak operating temperature and keeping damping performance consistent even when driving hard for prolonged periods.
The lower spring platforms are adjustable, allowing the car to be corner weighted for perfect balance and maximum tyre efficiency. The damper units are black chromed steel for superb durability even through the darkest of European winters, while aluminium components are anodised and steel lower mounts go through an electrophoretic deposition process followed by powder coating for outstanding corrosion resistance.
