Airtec Motorsport Turbo Elbow for EA888 Gen 4 (300-320ps)
Part of Airtec's expanding VAG range, this enlarged turbo inlet elbow is a direct replacement for the MQB Evo engine (300-320ps), offering increased performance and response through a freer-flowing design with a larger internal diameter.

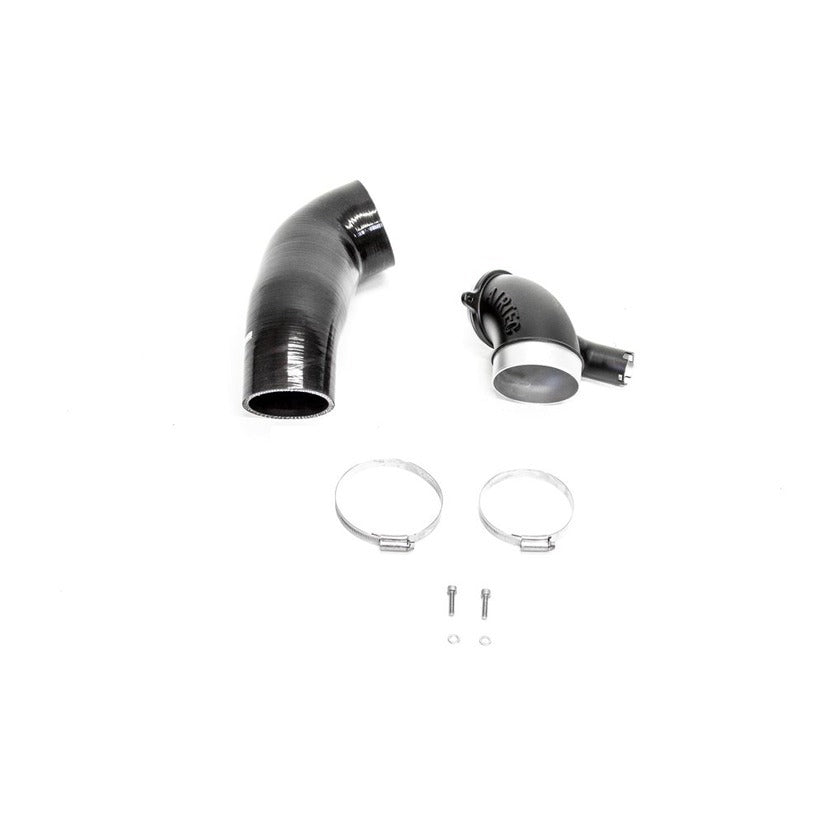

The original elbow runs a constant 80mm diameter throughout, limiting flow and capacity. Airtec's replacement pairs a cast aluminium elbow with a Pro Hoses silicone hose, running a larger 90mm diameter throughout before tapering to meet the 80mm airbox — a 27% increase in cross-sectional area, reducing restriction and improving turbo flow for sharper throttle response.
Key Features
- 27% increase in cross-sectional area
- Smoother, freer-flowing design
- Improves airflow to the turbo
- Sharpens throttle response
- Direct replacement fitment
- Includes all fixtures, fittings and a detailed fitting guide
Please Note
- OEM turbo elbow: 80mm diameter, 5,027mm² cross-sectional area
- Airtec Motorsport turbo elbow: 90mm diameter, 6,362mm² cross-sectional area
Compatible With
- Audi S3 (8Y), 2020 onwards
- Cupra Leon Mk4 300 TSI FW, 2020 onwards
- Cupra Formentor 310PS, 2020 onwards
- Volkswagen Arteon R 2.0 TSI 320ps, 2020 onwards
- Volkswagen Golf GTI Clubsport (Mk8), 2020 onwards
- Volkswagen Golf R (Mk8), 2020 onwards
