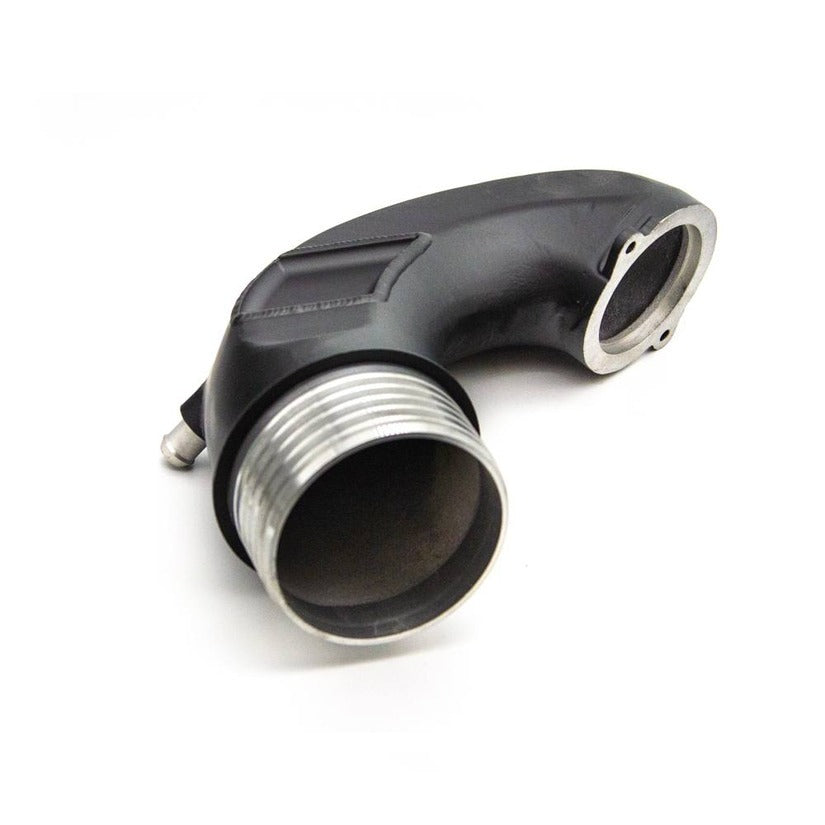

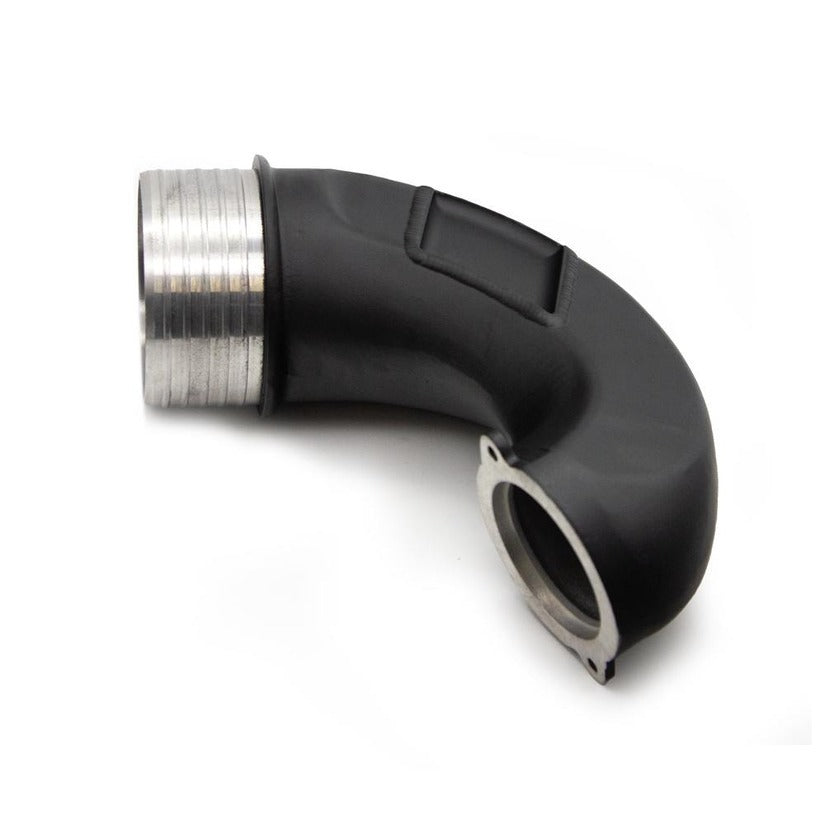

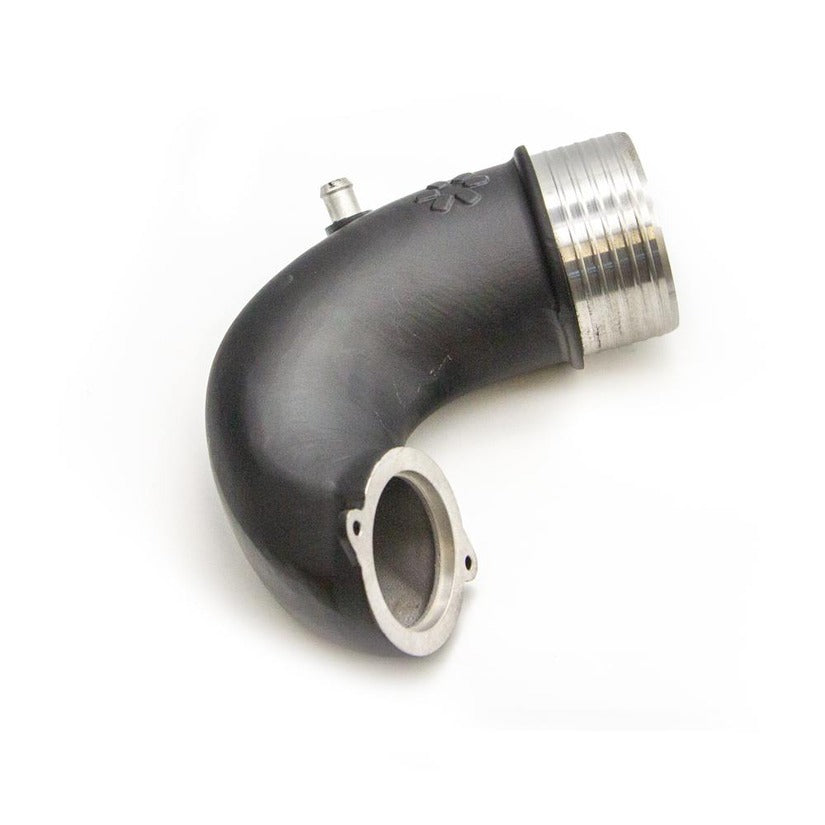

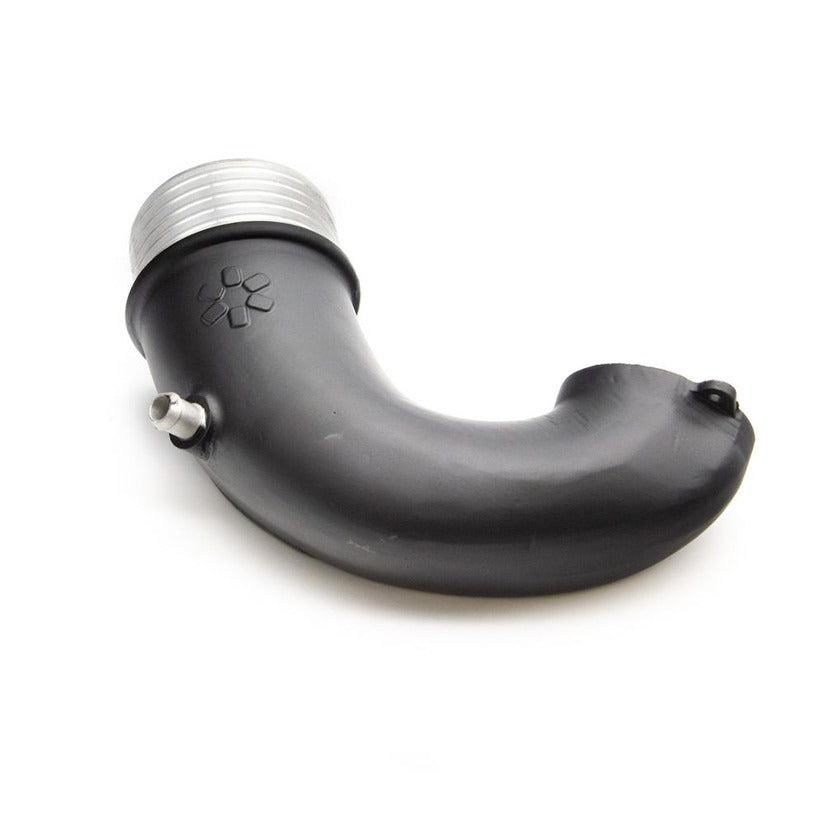

Airtec Motorsport Turbo Elbow for Audi RS3 8V / 8Y / TTRS (8S) (RHD)
Part of Airtec's expanding Audi range, this cast turbo elbow addresses the 2.5 TFSI engine's biggest bottleneck — the turbo elbow, which narrows dramatically as it runs down behind the engine to the turbo.

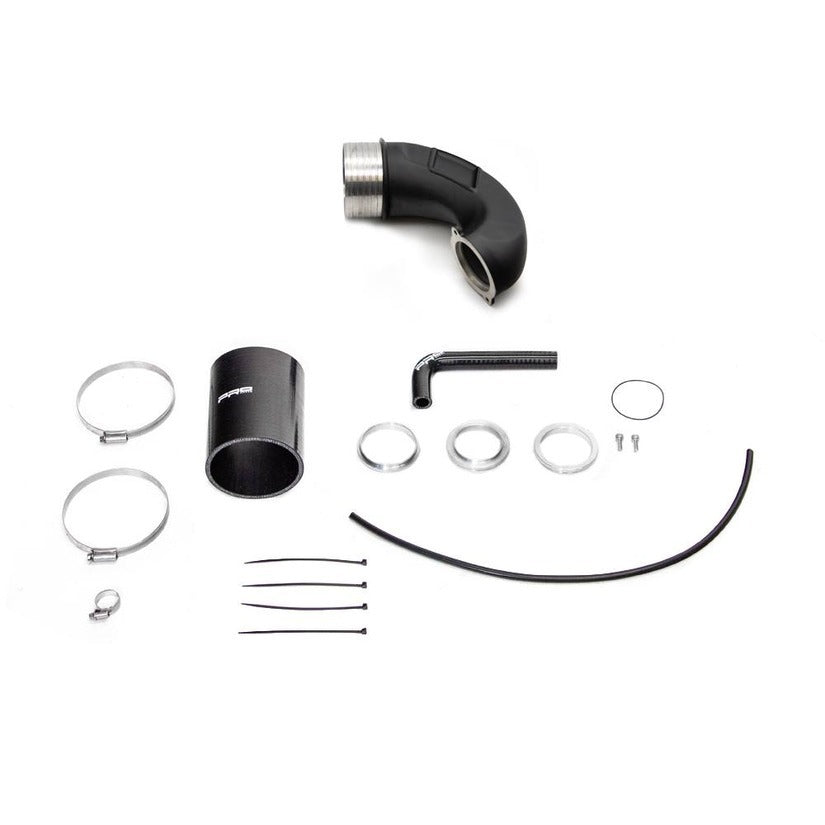

Airtec's in-house design makes the most of the available space with a 4"/102mm inlet that tapers smoothly, with no aggressive step, for optimum flow throughout. The result measures 8,171mm² at its widest cross-section, against the original's 5,026mm² — a 62.5% increase, averaging 30% larger internally overall, sharpening throttle response and reducing restriction. Made from high-quality cast aluminium, it's a direct replacement designed to work with Airtec's own induction kit (similarly sized aftermarket kits should also fit), with an indentation added for brake master cylinder clearance on this right-hand drive version. Machined flanges (62.8mm and 65.7mm) are included to suit both standard and various hybrid turbos, along with a Pro Hoses replacement silicone breather hose, vacuum line and new O-ring.
Key Features
- 62.5% increase in internal capacity at the widest point
- 30% larger internally on average than the original
- Smooth taper design to improve flow
- Sharpens throttle response and reduces restriction
- High-quality cast aluminium construction
- Works with standard and various hybrid turbos
- Powder-coated black finish with cast Airtec logo
- Comprehensive fitting guide included
Please Note
- Also fits Audi TTRS (8S) and RS3 8Y, 2017 onwards
Compatible With
- Audi RS3 (8V), RHD, fitted with Airtec's induction kit
- Audi RS3 (8Y), 2017 onwards, RHD
- Audi TTRS (8S), RHD
