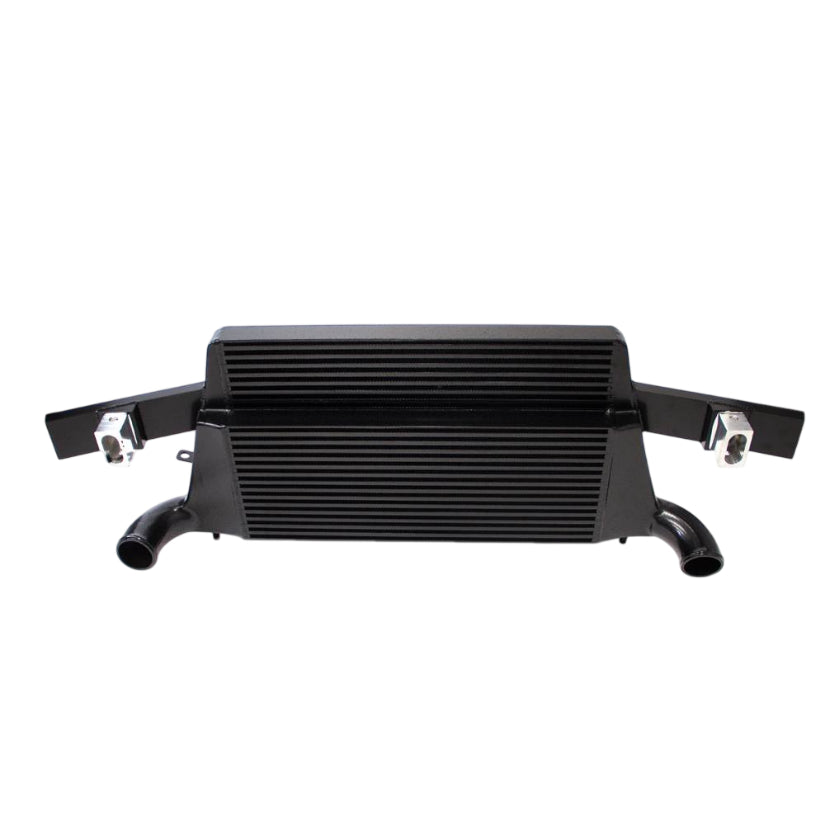

Airtec Motorsport Stage 3 Intercooler for Audi TTRS 8S
Freshly developed at Airtec's UK HQ, this Stage 3 front mount intercooler with integrated crash bar design (replacing the stock crash bar) is aimed at modified TTRS 8S owners chasing the highest cooling efficiency, power and performance for track or fast road use.

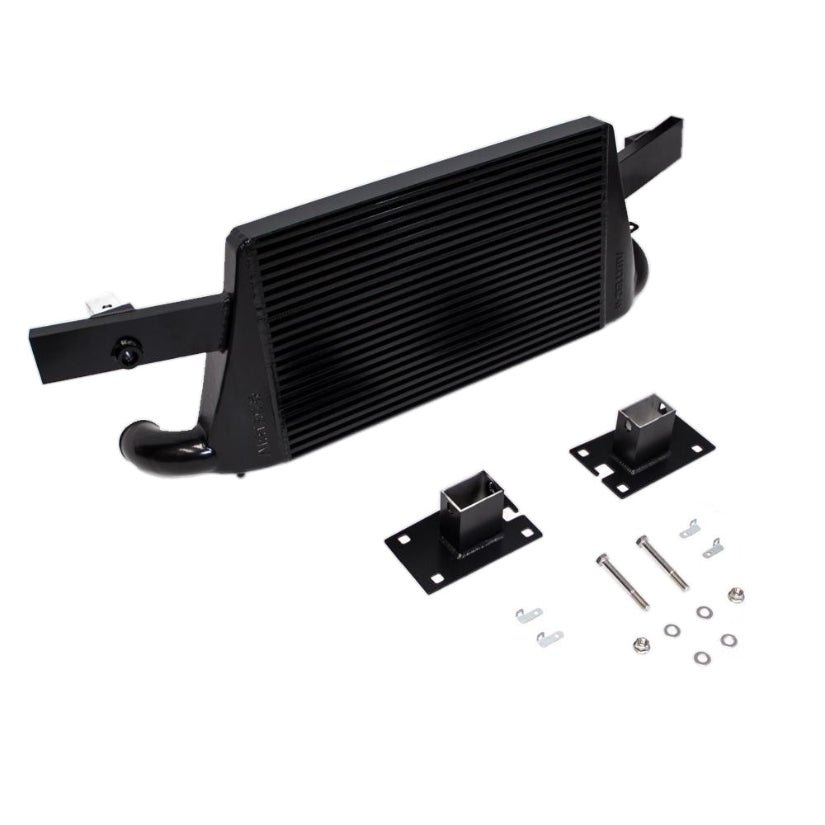

The finished design runs 70mm inlet and outlets flowing through custom end tanks into a stepped 100mm to 50mm single-pass core. By integrating the crash bar into the design, the intercooler makes full use of the entire front grille area while retaining the towing eye. This gives a 125% increase in surface area and 108% increase in volume over standard, radically reducing charge temperatures and supporting builds over 500bhp. The kit includes Airtec's CAD-designed end tanks, laser-cut brackets and a replacement silicone hose for the headlight washer jet.
Key Features
- 108% more capacity than standard
- 125% more frontal area than standard
- Proven race-quality bar and plate core
- 70mm inlet and outlets
- CAD-designed end tanks to optimise airflow
- Comes complete with full fitting instructions
- Proven power increases and cooling efficiency
- Towing eye feature retained
- Available in Pro Series Black only
Please Note
- Cutting and trimming is required to fit this kit
- OEM intercooler: 640mm width x 163mm height x 80mm depth, 8.3-litre capacity, 1,043cm² frontal area
- Airtec Motorsport intercooler: 627mm width x 375mm height x 100mm to 50mm stepped depth, 17.3-litre capacity, 2,351cm² frontal area
- Registered Design Right number 6171871
