Airtec Motorsport Front Mount Intercooler for Land Rover Defender TD5 2.4, 2.2 TDCI
Part of Airtec's expanding Land Rover range, this uprated intercooler is a direct replacement for the smaller, more restrictive OEM item on the Defender TD5 and 2.2/2.4 TDCi, aimed at maintaining performance over extended periods of driving.

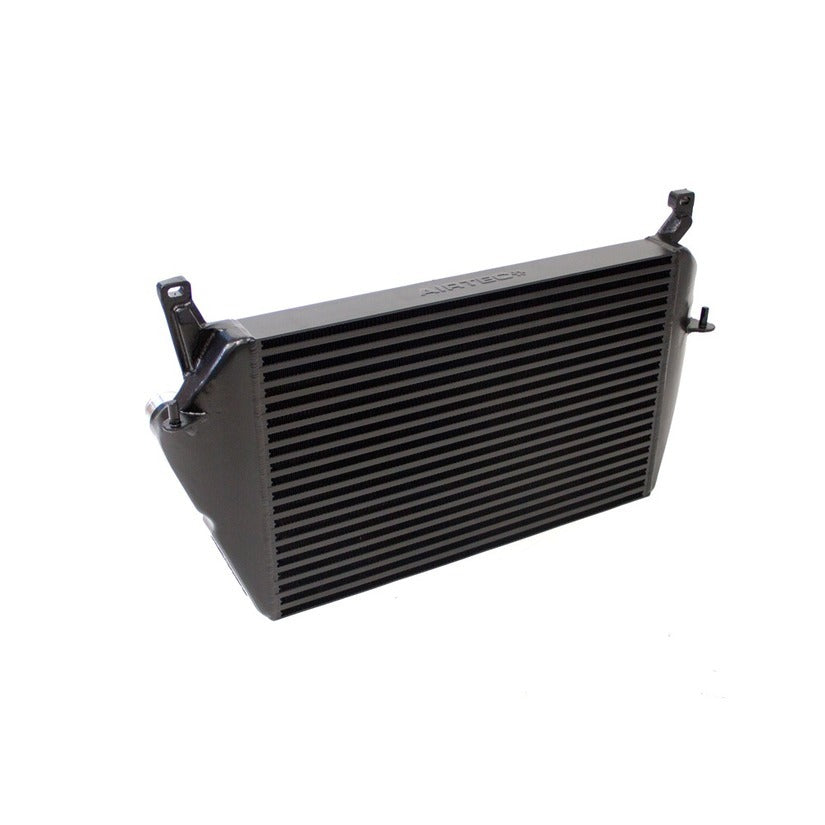

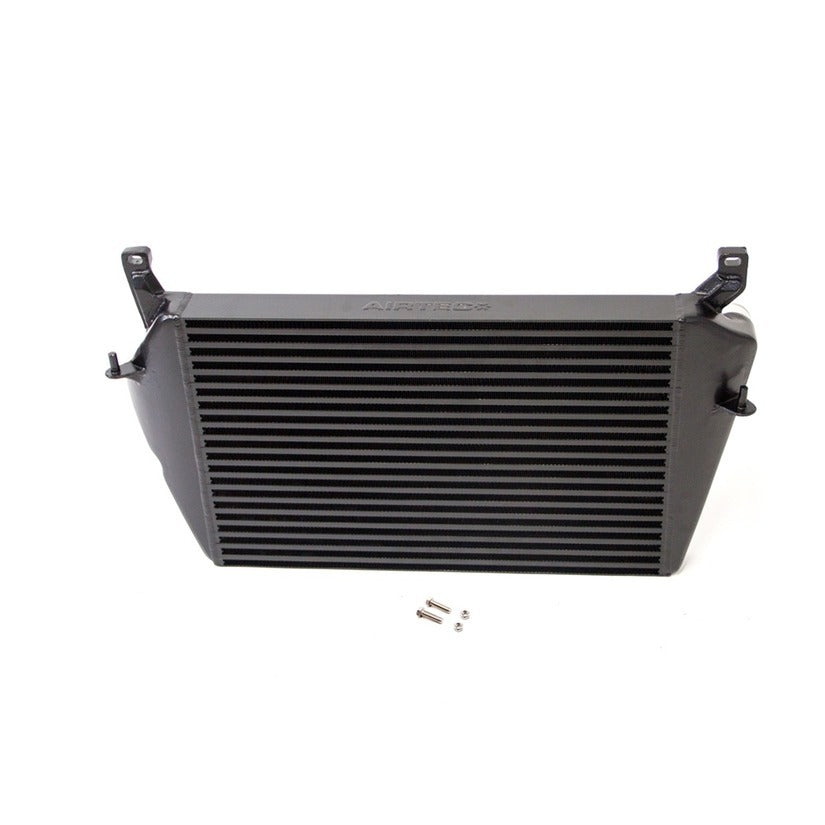

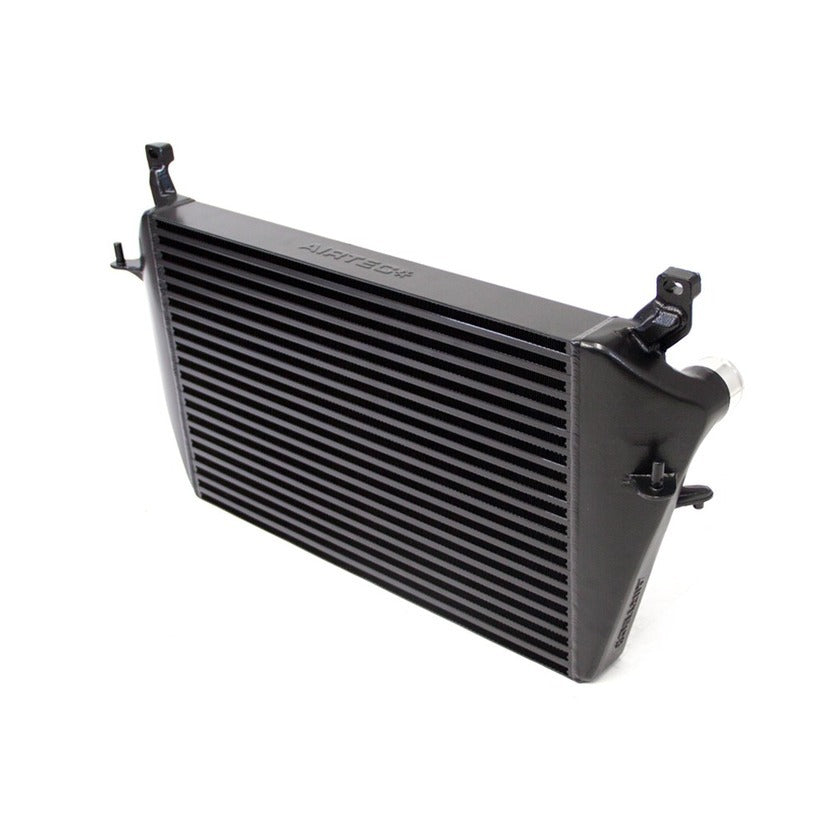

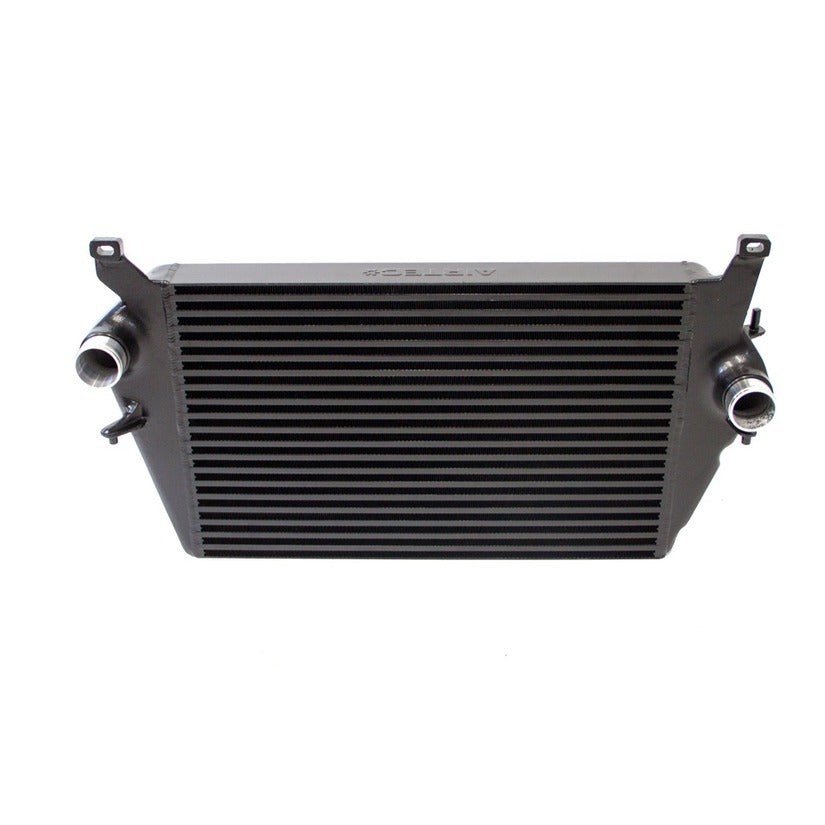

Working within the limited space behind the grille, Airtec built a much larger single-pass core, 65% taller than the original, for a 134% increase in overall capacity and a 55% increase in frontal area. High-flow, moulded one-piece cast end tanks direct airflow efficiently through the core. The outlets stay at 50mm each side to suit the original boost hoses, and fitment only requires minor trimming of the original plastic mountings — it's designed to fit air-con models, and non-air-con models with some mild fettling to the slam panel support stays, as shown in the fitting instructions.
Key Features
- 134% more capacity and 55% more frontal area than standard
- Large single-pass core
- Cast end tanks to optimise airflow
- Long-lasting, high-quality black powder coat finish
- Fits models with air conditioning
- Comes complete with full fitting instructions
Please Note
- OEM intercooler: 590mm width x 213mm height x 40mm depth, 5-litre capacity, 1,256cm² frontal area
- Airtec Motorsport intercooler: 555mm width x 352mm height x 60mm depth, 11.7-litre capacity, 1,953cm² frontal area
- Registered Design Right application pending
Compatible With
- Land Rover Defender TD5
- Land Rover Defender 2.2 TDCi
- Land Rover Defender 2.4 TDCi
