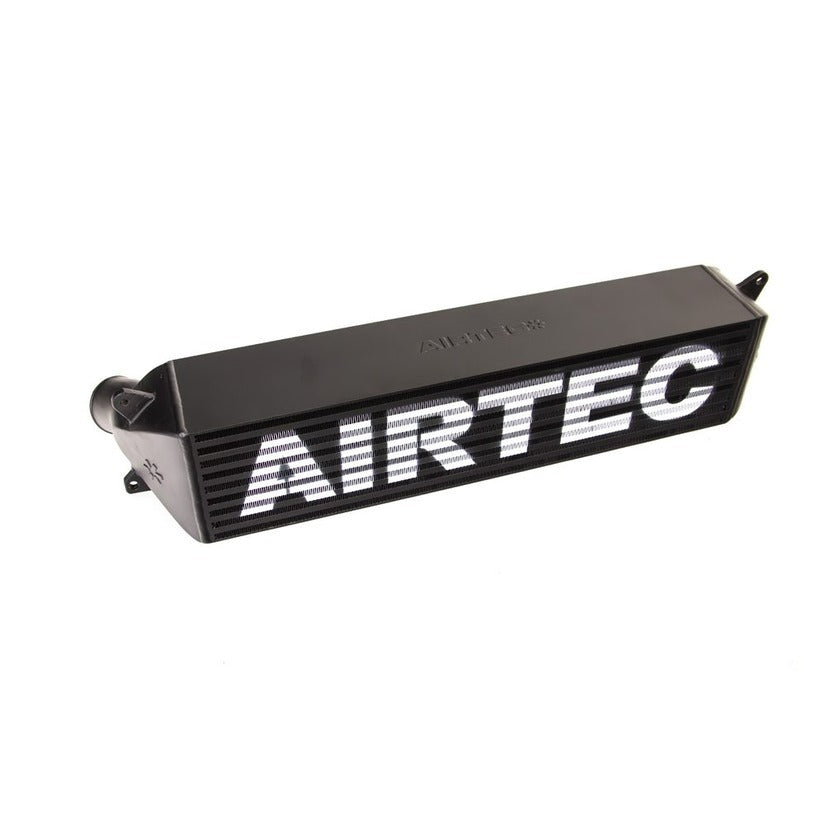

Airtec Motorsport Intercooler Upgrade for Hyundai Kona N
Part of Airtec's expanding Hyundai range, this intercooler is a direct replacement for the smaller, more restrictive OEM item on the Kona N, built to maintain performance during extended hard driving.

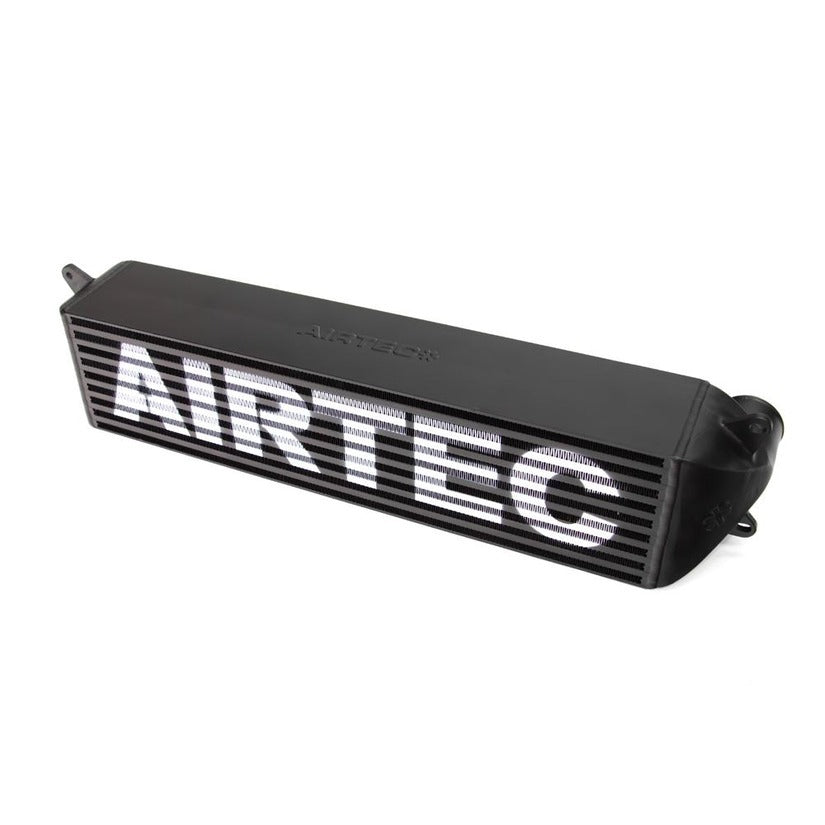

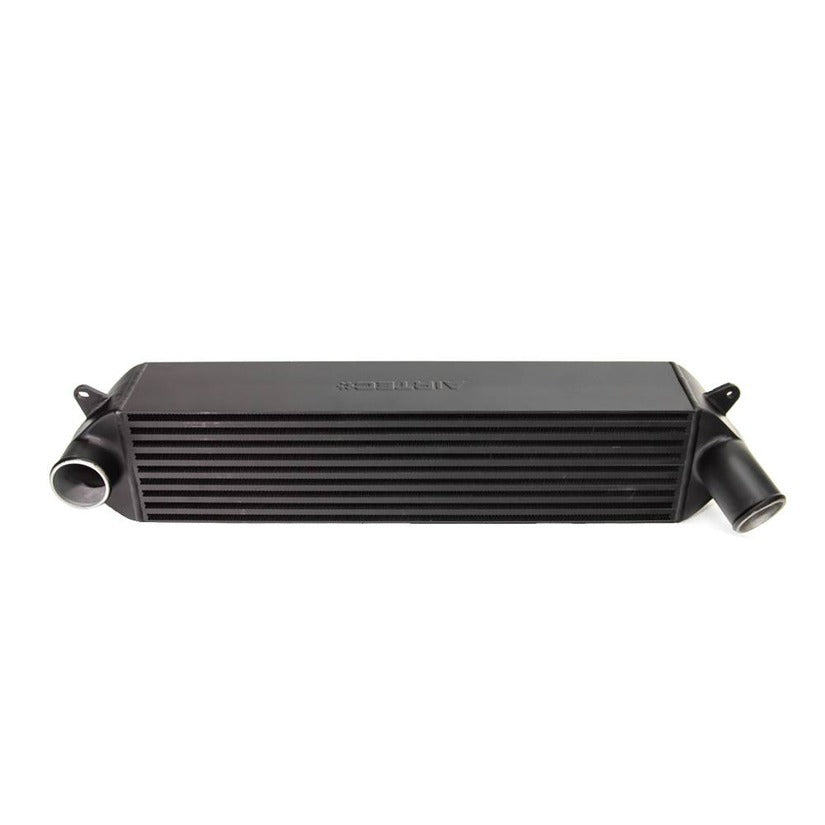

The factory intercooler is wide but shallow, leaving space above and below it unused; Airtec's replacement is deeper, taller and wider — 33% deeper than the original, for a 58% increase in overall capacity and a significant gain in frontal area. Inlet and outlet diameters also grow by up to 30%, to 63mm and 65mm from the standard 50mm, supplied with Pro Hoses silicone pipework joining to the OEM boost pipes. High-flow, moulded one-piece cast end tanks direct flow efficiently through the core, and the kit includes all fixtures and fittings.
Key Features
- 58% more capacity than the original intercooler
- Increased frontal area over the original
- Significant increase in cooling ability, reducing charge temperatures
- Up to 30% larger inlet and outlets
- High-flow, moulded one-piece cast end tanks
- Powder-coated black finish

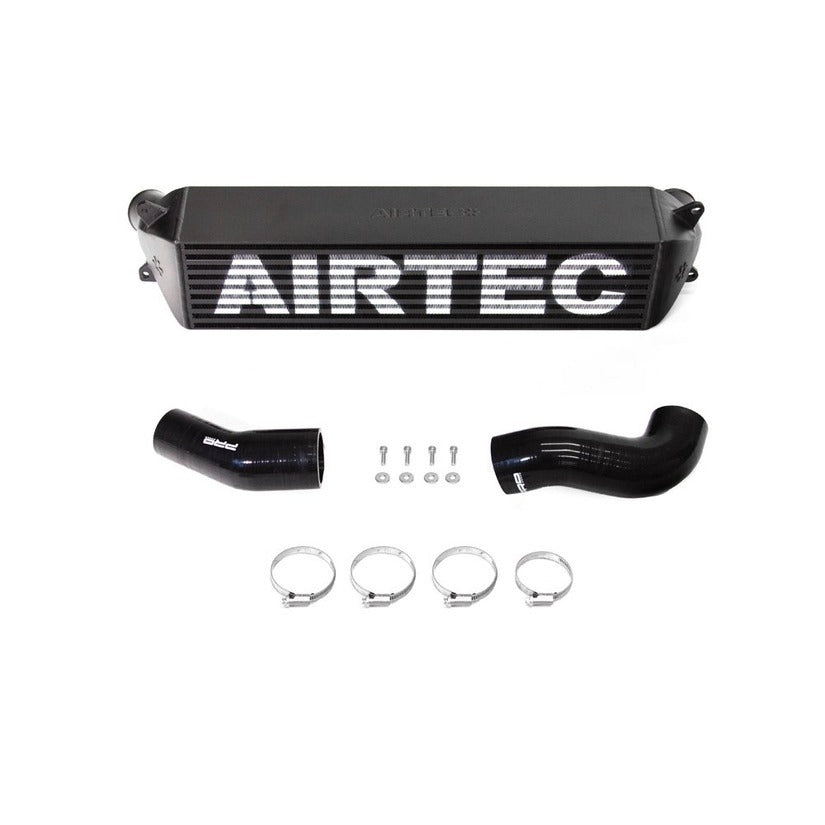

- Pro Hoses silicone pipework included
- Includes all fittings, fixtures and a detailed fitting guide
Please Note
- A small amount of trimming is required to fit — see the fitting instructions for details
- OEM intercooler: 610mm width x 130mm height x 90mm depth, 7.14-litre capacity, 793cm² frontal area, 50mm inlet/outlet
- Airtec Motorsport intercooler: 625mm width x 150mm height x 120mm depth, 11.25-litre capacity, 938cm² frontal area, 63mm inlet, 65mm outlet
- Registered Design Right application pending
Compatible With
