Airtec Motorsport Intercooler Upgrade for Ford Focus ST Mk4

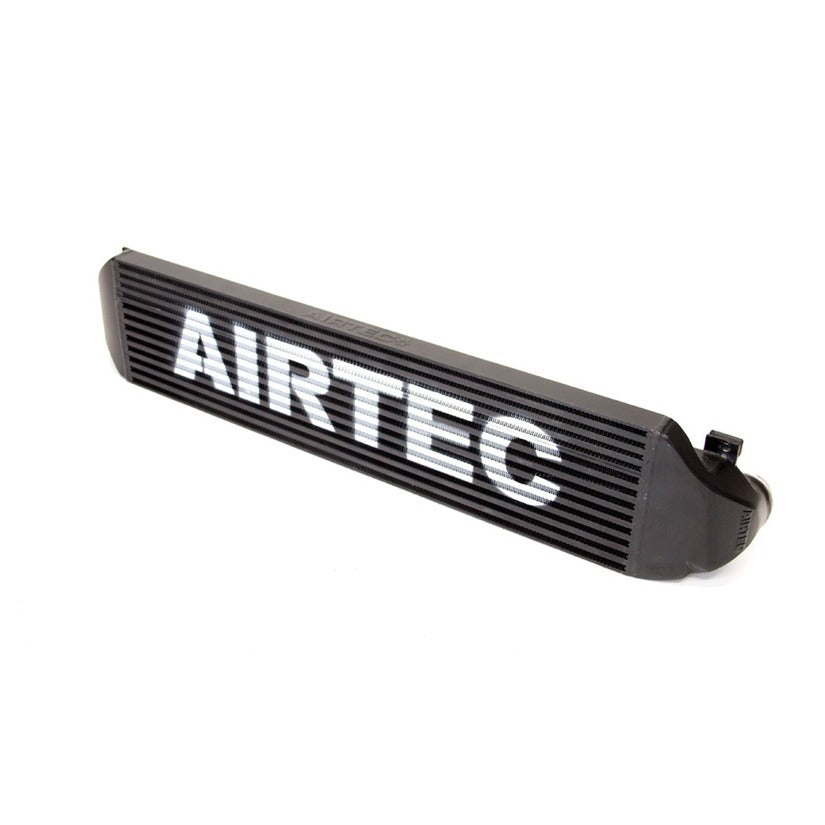

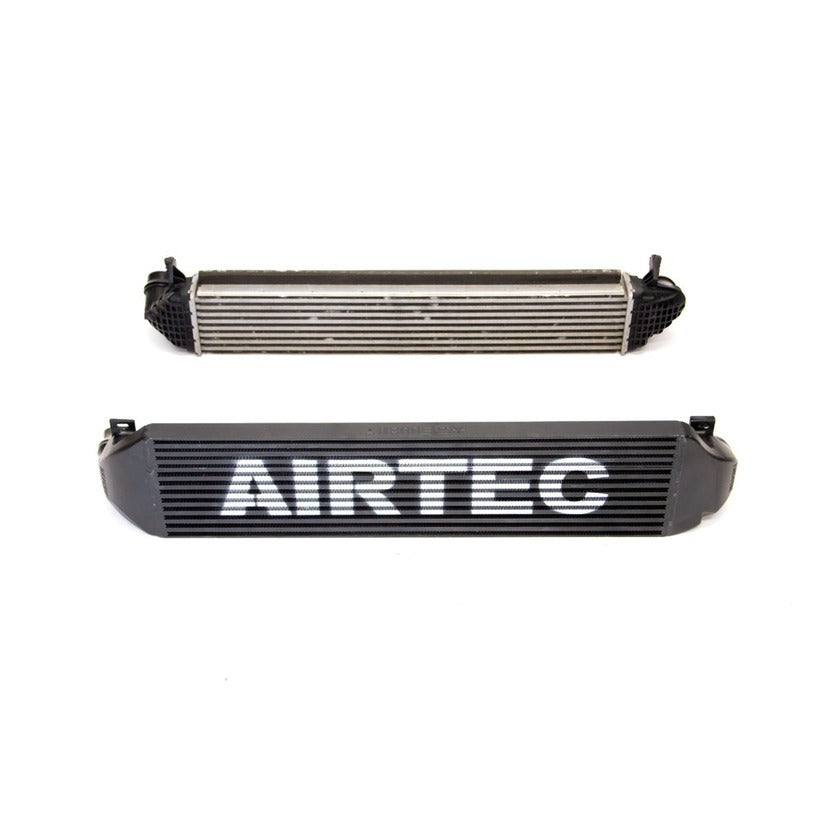

Developed and manufactured at Airtec's UK HQ, this front mount intercooler is a direct replacement for the smaller, more restrictive OEM item on the Mk4 Ford Focus ST, built to maintain performance during extended hard driving.
Working within the limited space behind the bumper, Airtec built a stepped core running from 85mm down to 35mm for a significant increase in overall capacity and frontal area over standard. High-flow, moulded one-piece cast end tanks and an internal air diverter direct flow efficiently through the core. It fits neatly behind the original bumper with only minor trimming, attaching to the original boost pipes via Airtec's own billet mountings, and can be reverted to standard, available in Pro-Series Black with or without the Airtec logo.
Key Features
- Significant increase in cooling ability
- Reduced charge temperatures
- Significant increase in frontal area over the original intercooler
- High-flow, moulded one-piece cast end tanks
- Internal air diverter
- Powder-coated black finish

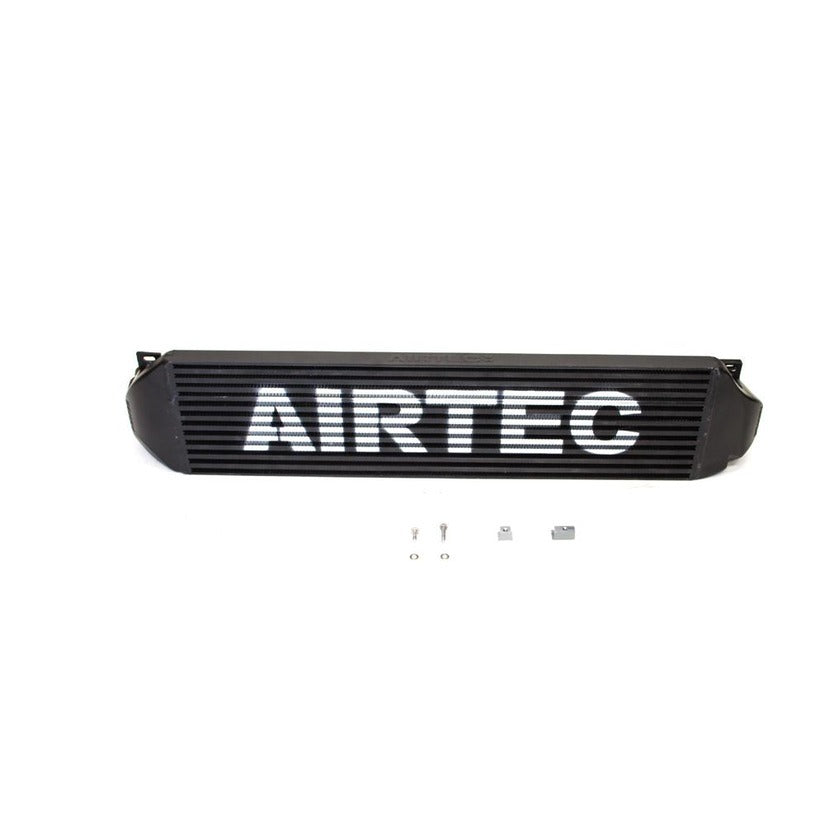

- All fittings and fixtures included
- Step-by-step fitting instructions
Please Note
- Dimensions: 730mm width x 185mm height x 85mm/35mm stepped depth, 9.5-litre capacity, 1,350cm² frontal area
- Registered Design Right application pending
Compatible With
