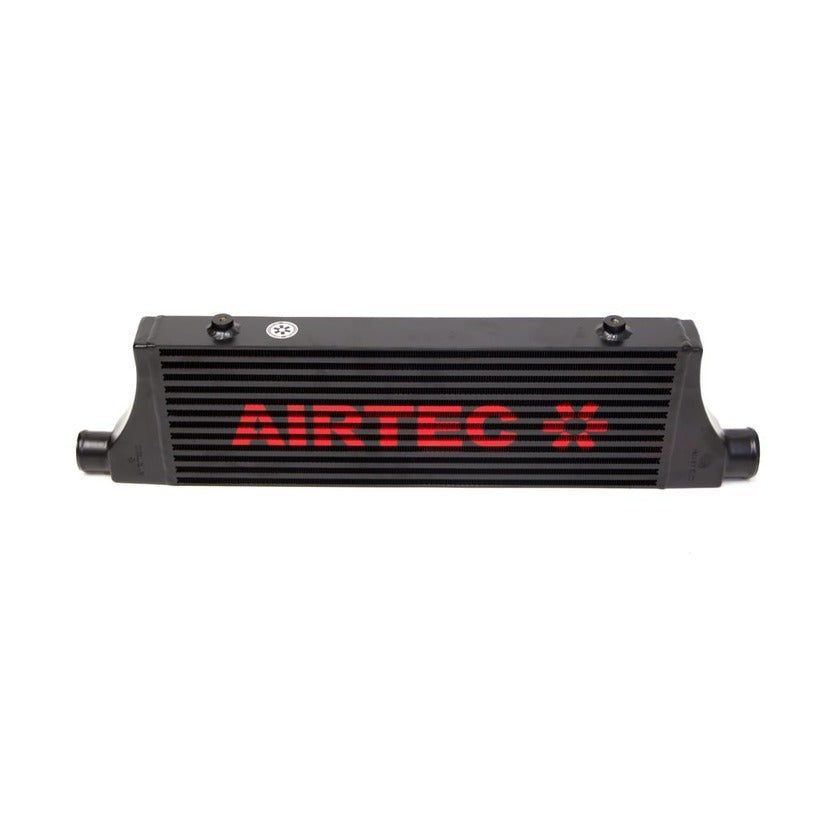

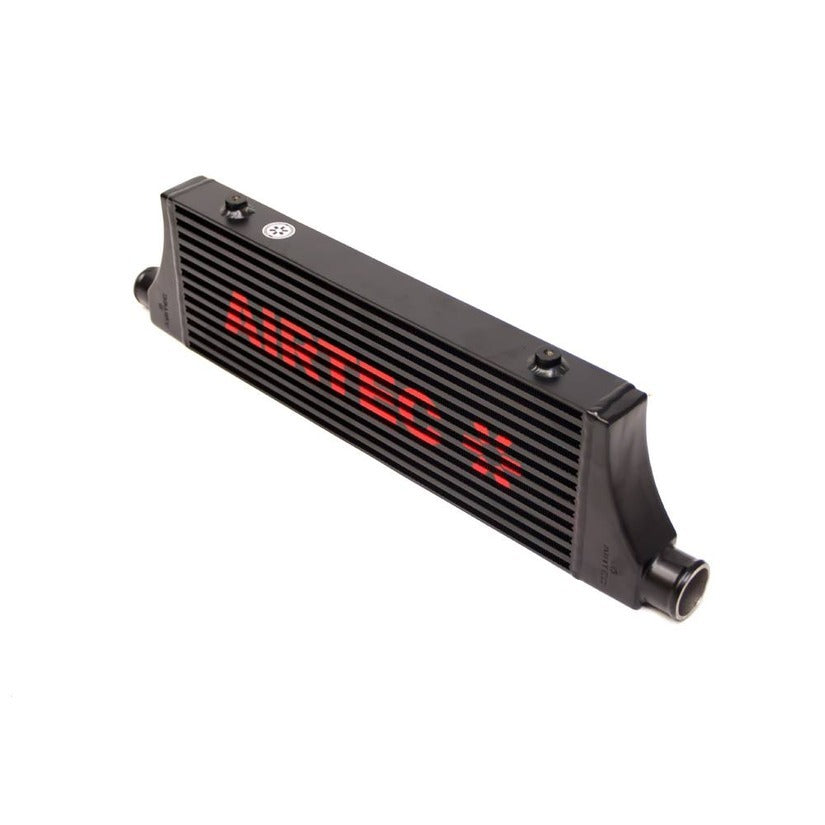

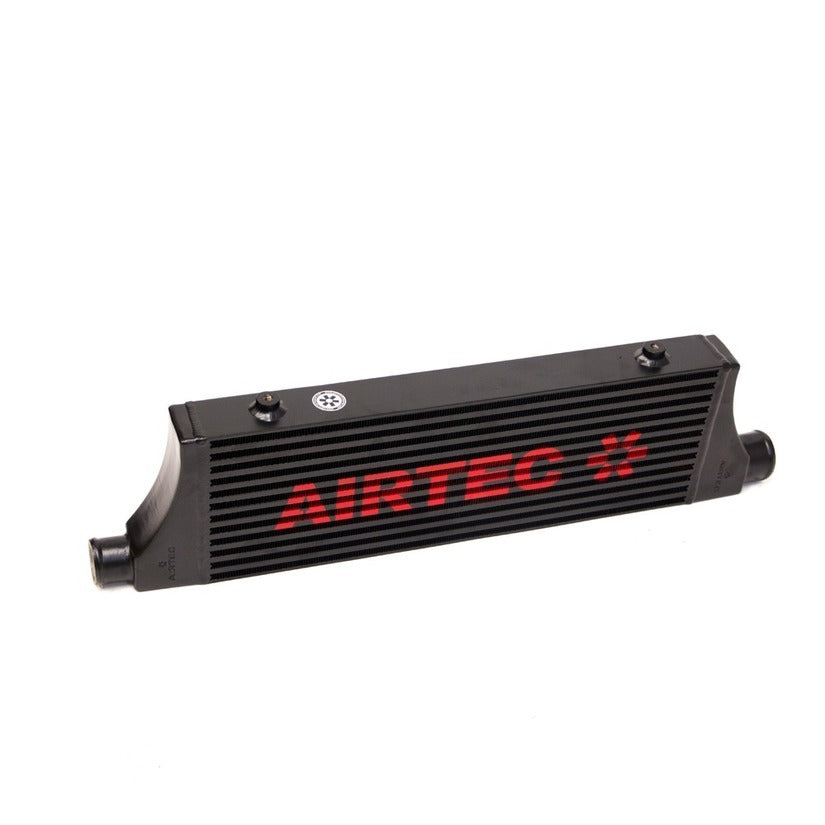

Airtec Motorsport Intercooler Upgrade for Fiat 595 Abarth

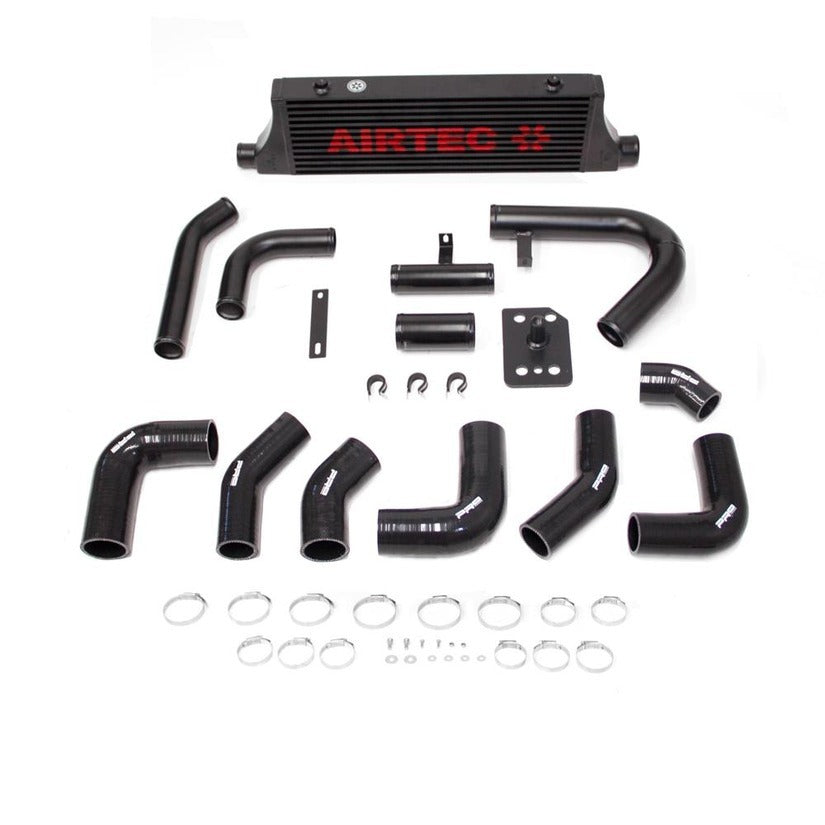

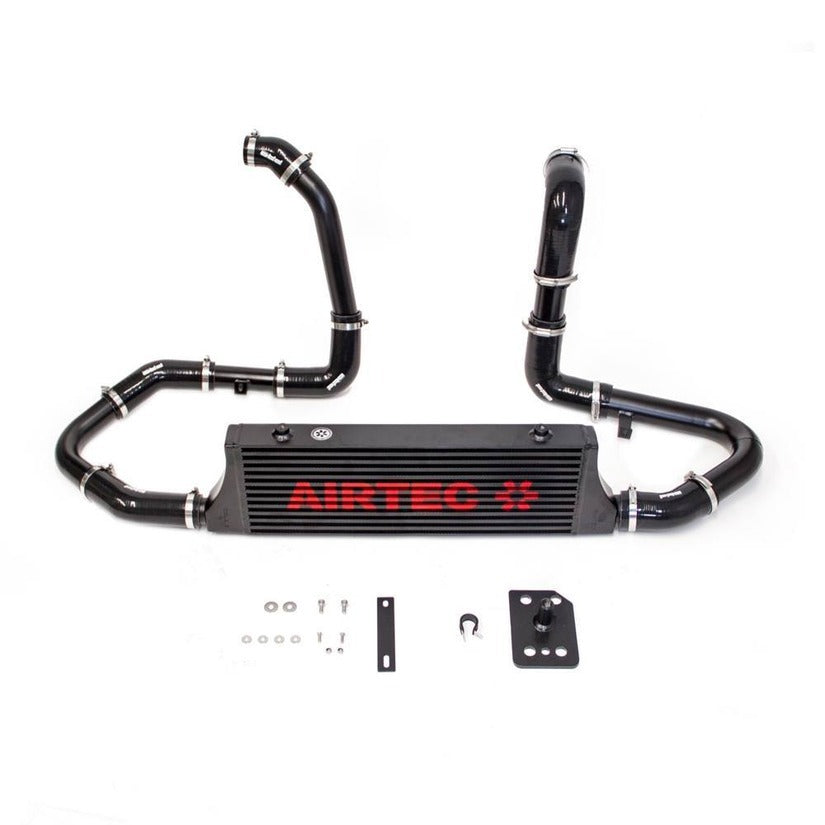

Replaces the restrictive original twin intercooler setup and its lengthy pipework with a single Airtec 60mm core intercooler and a shorter alloy boost pipe kit.
50mm pipework from turbo to intercooler and 60mm from intercooler to throttle body keeps turbo spool sharp while maximising power output.
Dyno Tested
On a Fiat 500 Abarth fitted with a cat-back exhaust and Airtec's FMIC, three back-to-back runs showed intake temperatures of 120-123°C dropping to a consistent 22°C at the outlet — a 100-degree reduction with no heat soak.
Key Features
- 60mm-thick, proven bar and plate core to Airtec's own spec
- Airtec-branded cast end tanks for improved airflow and strength
- Dyno-proven to lower intake temperatures and add bhp
- Shorter charge pipes than the standard twin intercooler setup for faster turbo spool
- Fitting takes approximately 2-3 hours
- 3-year unlimited mileage warranty
- Available in Pro-Series Black
Please Note
- Dimensions: 820mm width x 205mm height x 65mm depth, 10.9-litre capacity
- Registered Design Right number 6023445
Compatible With
- Fiat/Abarth, Garrett GTI446 turbo, 165/180/190bhp, automatic paddle-shift gearbox — Series 3 180 Competizione (mid-late 2015), Series 4 Turismo, Series 4 Competizione
