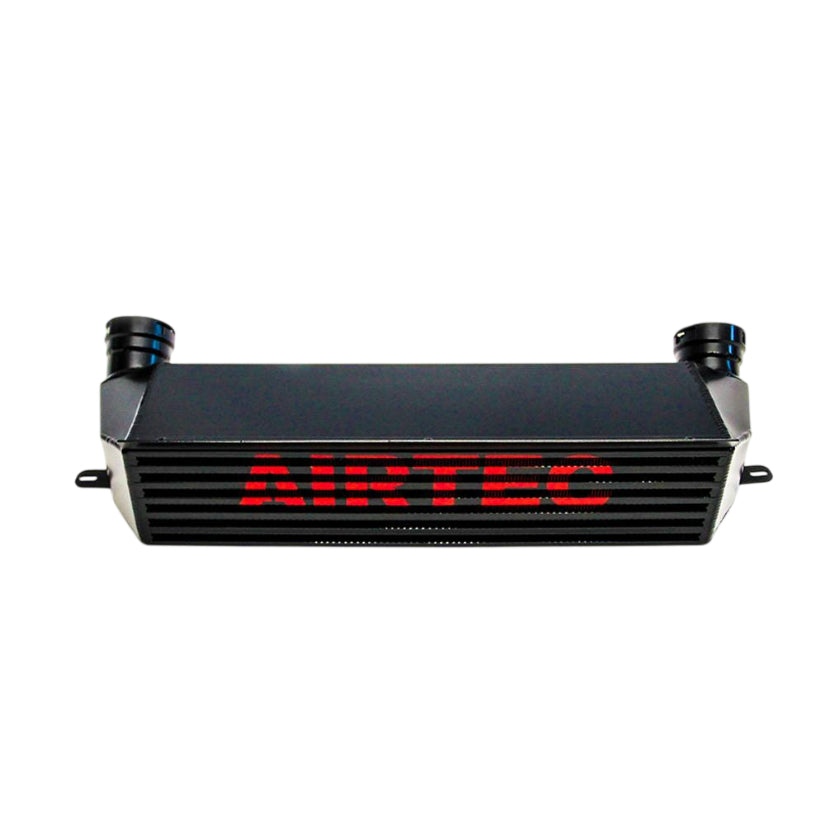

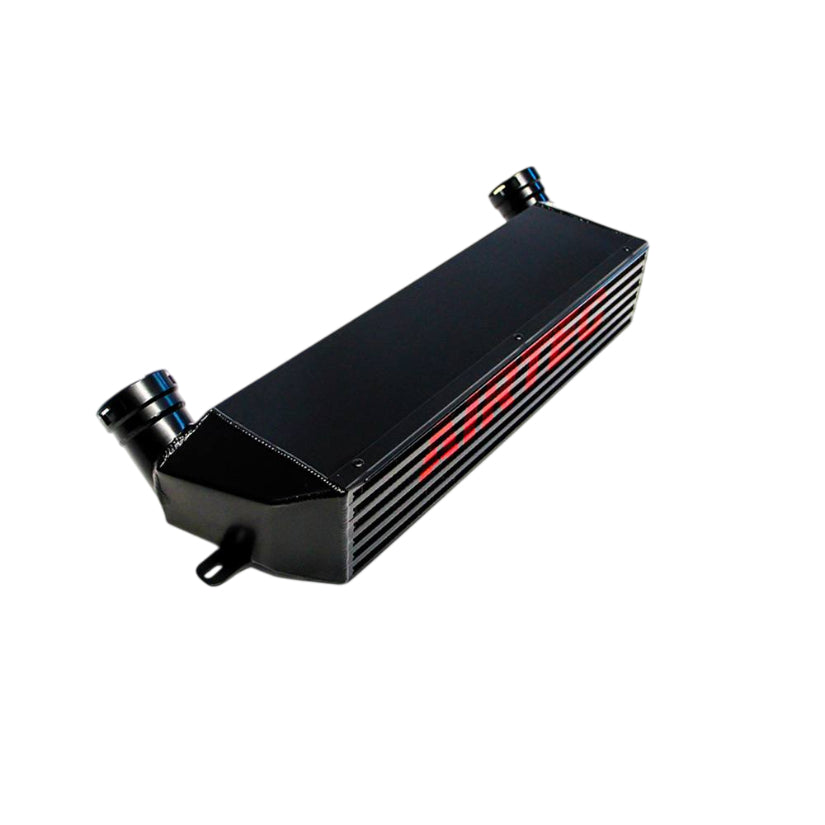

Airtec Motorsport Intercooler Upgrade for BMW 1 & 3 Series – Diesel Models (E-Series)
Part of Airtec's expanding BMW range, this intercooler is a direct replacement for the smaller, more restrictive OEM item on 1 and 3 Series diesel models, built to maintain performance during extended hard driving.
Working within the limited space behind the bumper, Airtec built a wider, taller core with a huge 150mm depth for a 94% increase in overall capacity and a significant increase in frontal area over standard. High-flow, moulded one-piece cast end tanks direct flow efficiently through the core, finished in high-quality black powder coat. This is a replacement for BMW part number 17517524916, suited to all models with matching 62mm inlet and outlets.
Key Features
- 94% more capacity than the original
- Airtec-logo'd cast end tanks for improved airflow and strength
- Increase in frontal area over standard
- Significant increase in cooling ability
- Powder-coated black finish
- Includes fittings and fixtures
- Airtec logo available at no extra cost
Please Note

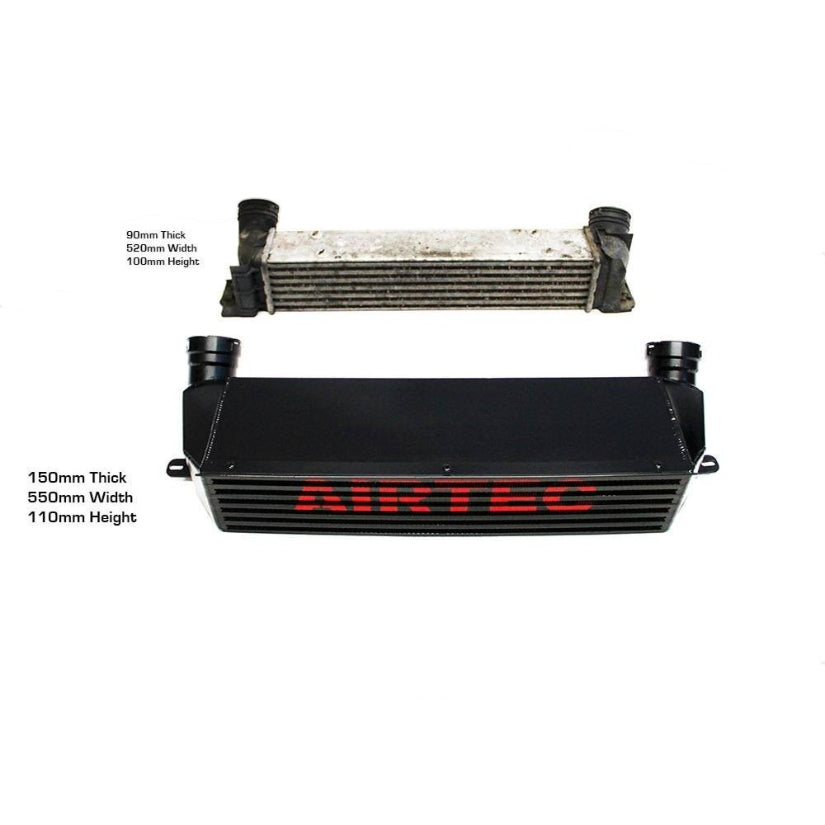

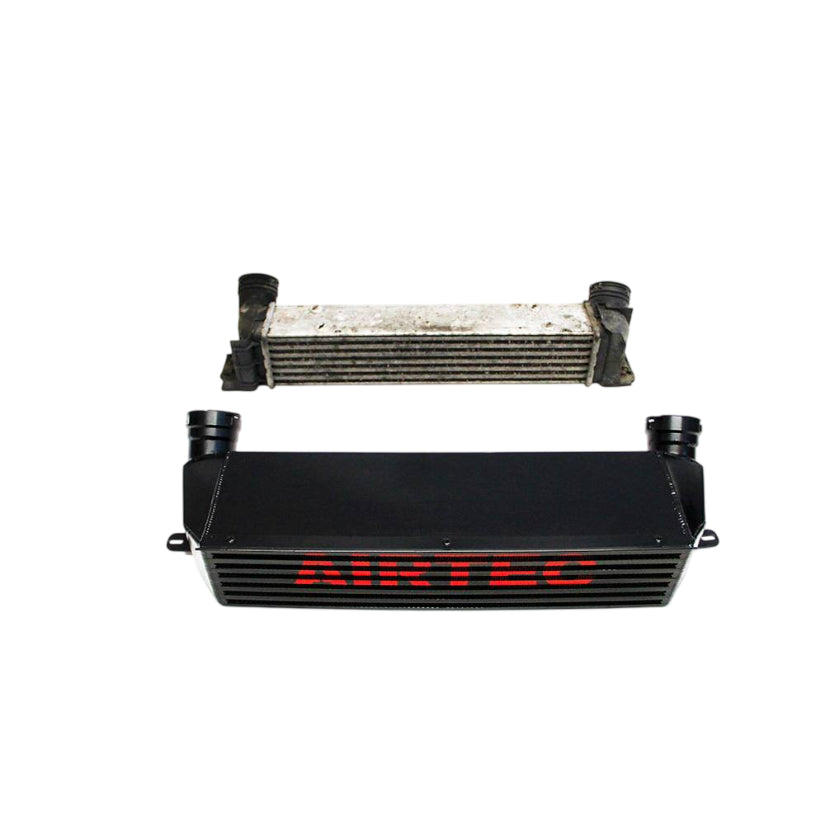

- OEM intercooler: 520mm width x 100mm height x 90mm depth, 4.7-litre capacity, 5,200cm² frontal area
- Airtec Motorsport intercooler: 550mm width x 110mm height x 150mm depth, 9.1-litre capacity, 6,050cm² frontal area, 62mm inlet/outlets
- Registered Design Right number 6049893
Compatible With
- BMW 1 Series (E8x), 116d/118d (2003-2011), 120d (2003-2007)
- BMW 3 Series (E9x), 316d/318d (2004-2011), 320d (2004-2008)
- BMW X1 (E84), 16d/18d (2008-2015)
