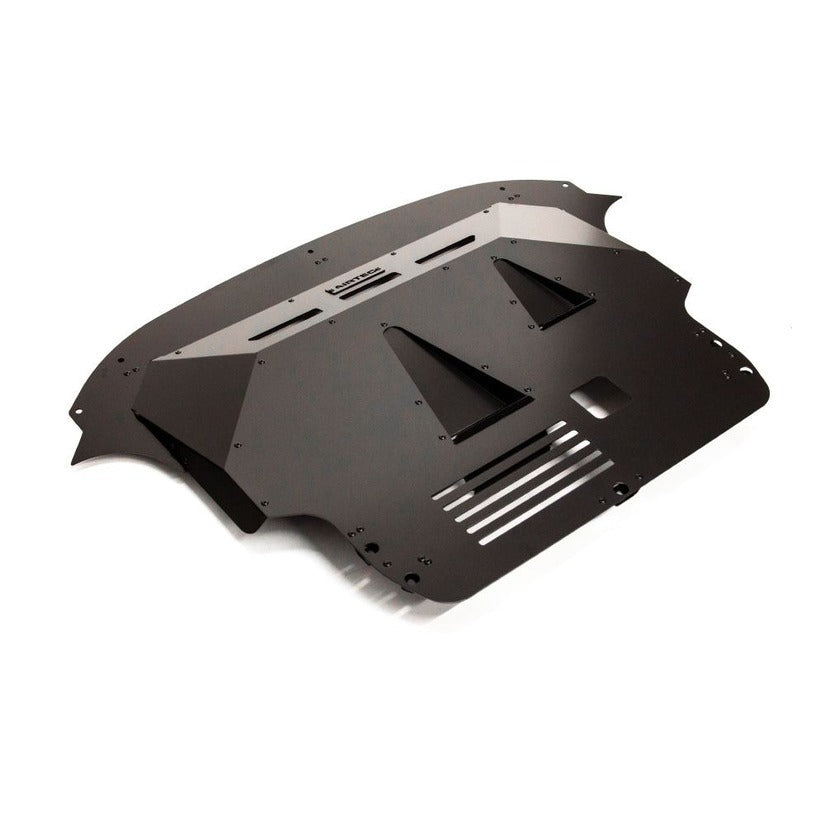

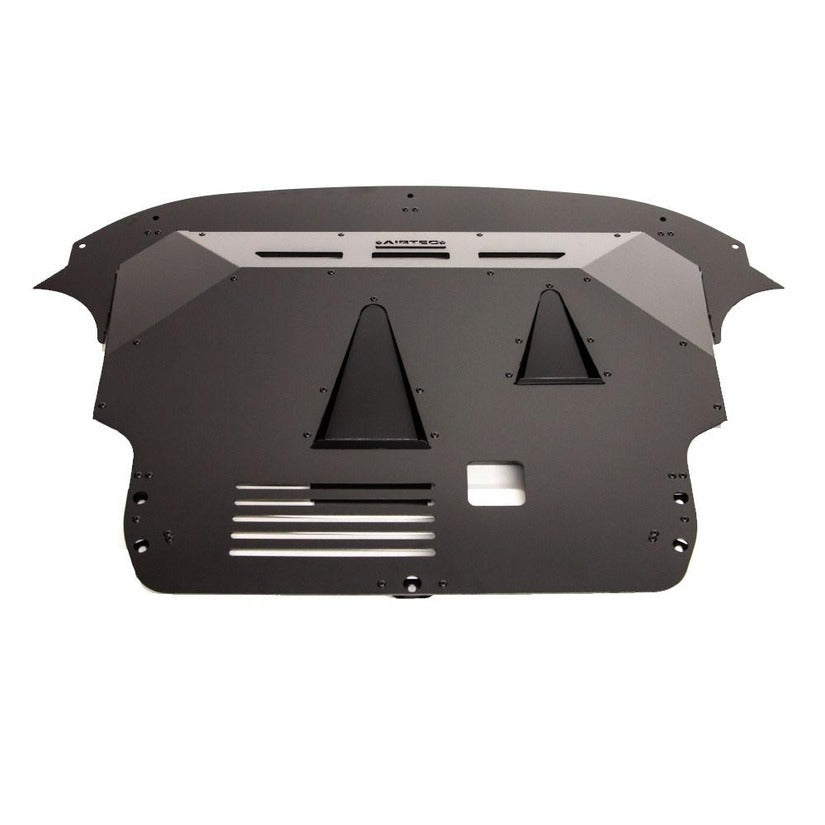

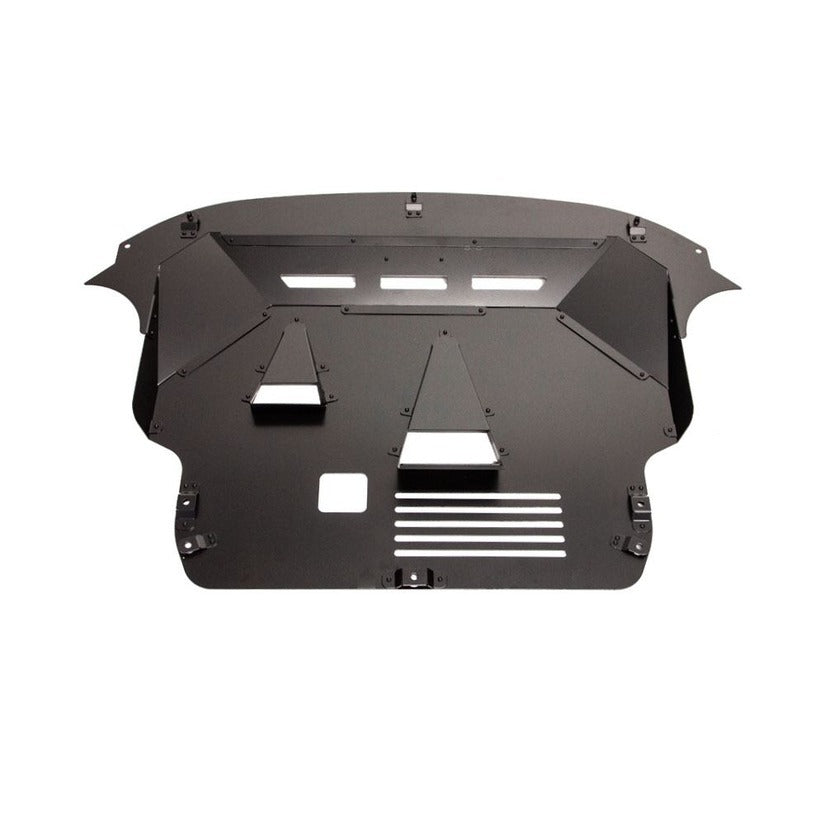

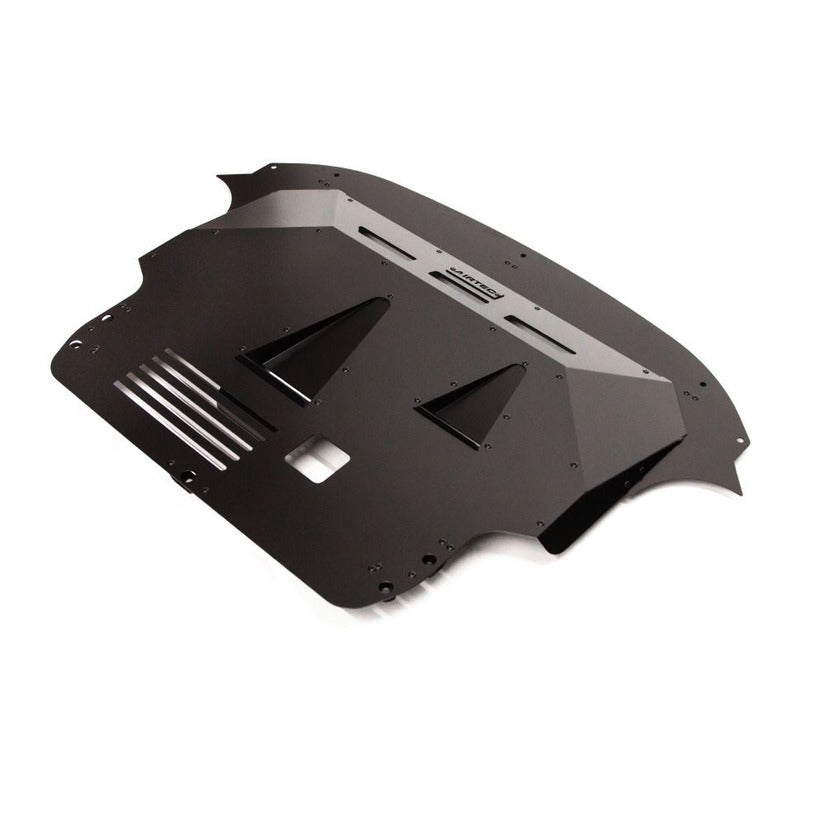

Airtec Motorsport Aluminium Under Tray for Ford Fiesta ST180
Part of Airtec's expanding Ford range, this under tray fills a gap on the ST180 — these cars don't come with one from the factory, despite the clear benefits, so Airtec built one from durable 2mm aluminium.

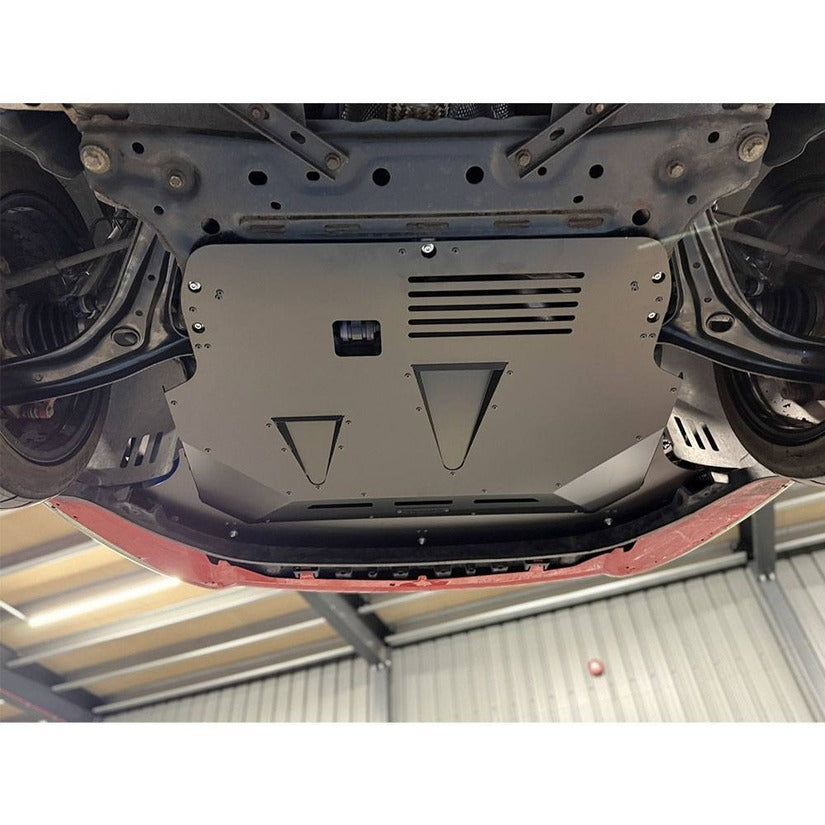

It fits using Rivnuts into the existing holes in the front subframe (no drilling needed, though a rivet gun is required), secured with eight fixings for strength. The design spans the full front end for improved aerodynamics, with a large centre scoop directing air up towards the turbo to help manage under-bonnet temperatures at speed, and a smaller scoop feeding the gearbox for transmission cooling. The rear of the tray is also spaced down to encourage airflow through.
What does an under tray do?
An under tray serves three main purposes: protecting the underside of the car from road debris and impact damage, improving aerodynamics by smoothing airflow underneath the car to reduce drag and improve grip, handling and efficiency, and — on performance models like this one — actively venting cold air to or extracting warm air from the engine bay for extra cooling.
Key Features
- Direct fit designed specifically for the Fiesta ST180
- Built from a 3D scan and CAD software for an exact fit
- Made from high-quality aluminium for added strength
- No drilling required — uses Rivnuts into existing holes
- Protects the underside of the car and improves aerodynamics
- Ducting helps cool the engine bay and transmission
- Durable black powder coat finish

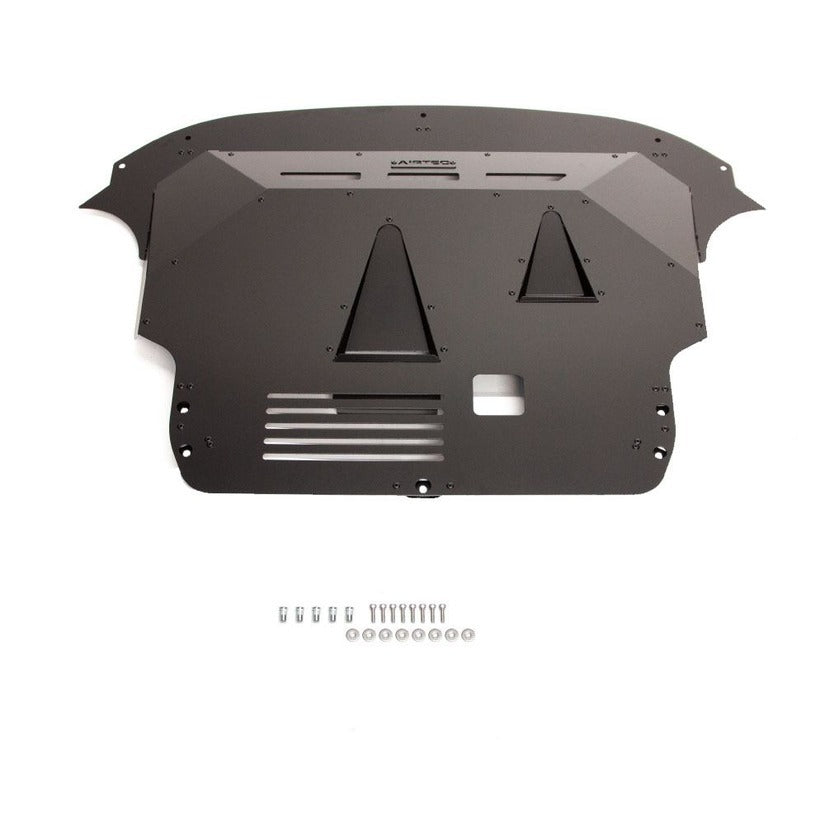

- All fittings included, plus a detailed installation guide
Please Note
- Provides clearance for an uprated torque mount, exhausts and big boost pipe kits, but cannot be fitted alongside aftermarket front subframe chassis braces that pick up off the TCAs — see the fitting guide for details
- Additional shipping costs may apply for international and EU customers due to box size
