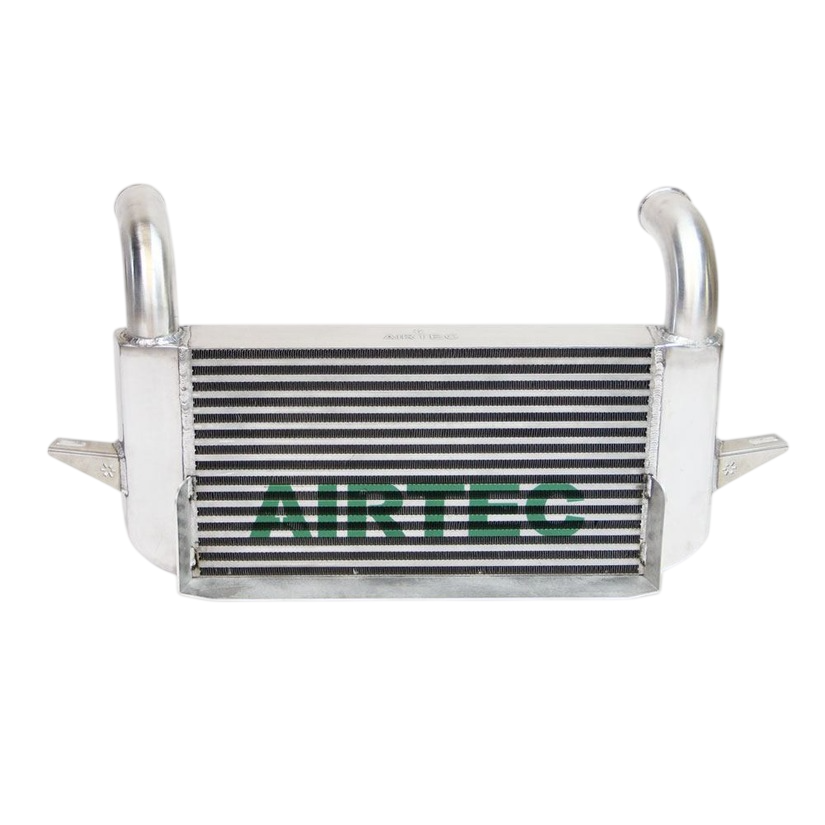

Airtec Motorsport 70mm Top Feed Intercooler Upgrade for 3-Door, Sapphire and Escort Cosworth
Part of Airtec's expanding Cosworth range, this 70mm top-fed core intercooler suits the 3-door Sierra as well as 2WD and 4WD Sapphire and Escort Cosworth models, built to maintain performance during extended hard driving.
A high-flow, single-pass core with 70mm depth offers a significant increase in overall capacity and frontal area over the original, with an air ram scoop forcing air into the core. The top-feed design reduces restriction compared with common RS500-style intercoolers, making it better suited to higher tune levels or heavy track use, and high-flow end tanks direct airflow efficiently. It fits neatly behind the original bumper and can be reverted to standard, using the original inlet and outlet pipes, with an optional fitting kit including uprated polyurethane mounting bushes.
Power Rating
There are a lot of variables in rating any intercooler's power capability, but as a general guide, this 70mm top feed intercooler suits builds up to approximately 550bhp.
Key Features
- 70mm thick, track-proven bar and plate core
- Airtec cast end tanks for improved airflow and strength
- No cutting or drilling — fits in 1-2 hours with instructions
- 3-year unlimited mileage warranty
- Available in Pro-Series Satin Black or Natural Silver
- Airtec logo available at no extra charge
Please Note
- Will not fit models with air conditioning
- Escort Cosworth models require the 2WD hot side hose option
- Made to order — expect a lead time of approximately 2-3 weeks
- Dimensions: 715mm width x 300mm height x 70mm depth, 15.0-litre capacity
- Designed to pair with Airtec's uprated radiator; if running a standard radiator, it may need spacing down by approximately 5mm
- Registered Design Right application pending
Compatible With
- Ford Sierra Cosworth (3-door)
- Ford Sierra Sapphire Cosworth, 2WD and 4WD
- Ford Escort Cosworth
