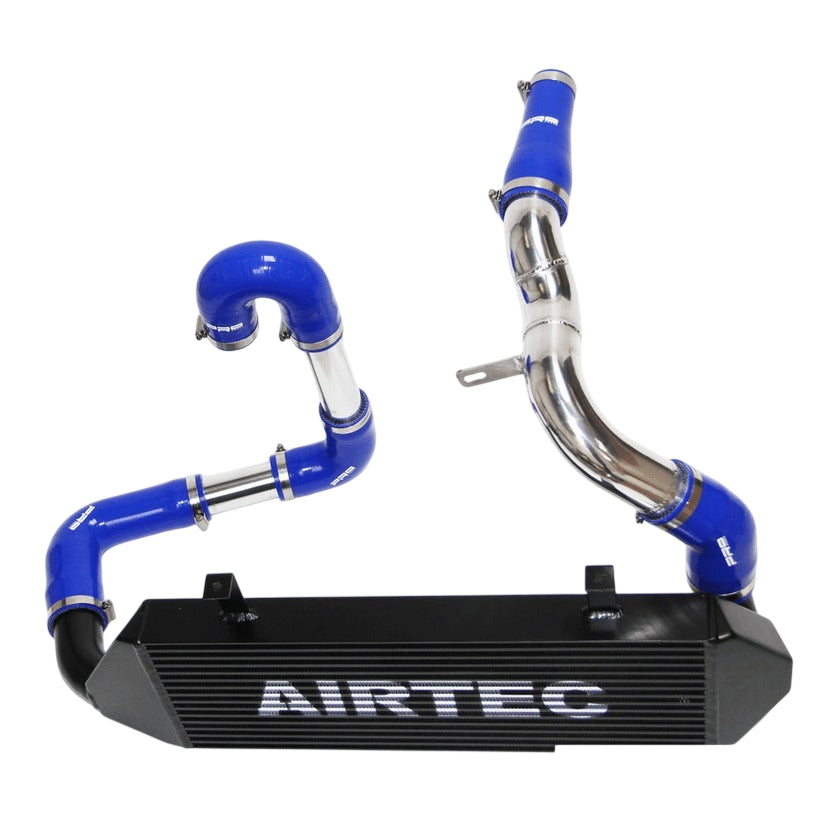

Airtec Motorsport 60mm Core Intercooler Upgrade for Astra Mk5 1.9 Diesel
An intercooler upgrade for the Astra Mk5 1.9 CDTi, particularly beneficial on remapped cars, suited to fast road and even track use — as fitted to Airtec's own demo car.
Tested
At AmD Tuning (Essex, February 2014), a test car fitted with Airtec's intercooler was dyno'd on both the standard map and a Stage 1 remap. On the standard map, intake temperatures of 115-119°C were reduced to just 13-18°C at the outlet across three runs — an average reduction of 101 degrees. On the Stage 1 remap, intake temperatures of 128-136°C were reduced to 19-25°C at the outlet — an average reduction of 108 degrees.
Key Features
- Huge 60mm core with flowed cast end tanks — less welding, a stronger intercooler
- High-quality 4/5-ply silicone hoses with alloy joiners and stainless jubilee clips
- Powder-coated standard intercooler support brackets
- Retains original fog lights with no modification
- Fitting instructions and all required fixings included
- Proven power increases for fast road and track
- Available in Satin Black or Natural Silver
Please Note
- Dimensions: 875mm width x 230mm height x 60mm depth
- Registered Design Right application pending
Compatible With
- Vauxhall Astra (Mk5), 1.9 CDTi
