AIM MXS MXP MXG 1.2/1.3 Strada NON Logging Looms & Connectors

AiM 23 Pin Strada 1.2 Analog Loom for MXS, MXP, MXG

The AiM 23 pin AMP connection harness is an optional extra for the Strada MXS, MXP, MXG dash displays.

Key Features :

23 Pin Analog Loom

The AiM 23 pin AMP connector is an optional harness with pre-wired connections. Offering 4 analogue, speed and lap channels all being terminated with 719 female binder plugs.

These plugs can be extended to suit your requirements by purchasing the 719-719 patch leads which are available in the accessories tab.

The 23 pin AMP connection provides:

Analogue channels 1-4
Speed
Lap
RS232tx/rx
Digital output
CAM2+/-

Please Note: This harness is an optional tool to help you gain more data and add extra sensors to your kit should you require them.

AiM 14 Pin Plug and Pins (1.2 Strada MXS, MXP, MXG)

The AiM 14 pin plug and pins are ideal for the MX Strada 1.2 loggers if you're in need of a replacement or just to keep them as spares.

Key Features :

AiM 14 Pin Plug and Pins (1.2 Strada MXS, MXP, MXG)

The AiM 14 pin plug and pins are ideal if you need a replacement or to keep them as spares.

Suitable for MX Series Strada 1.2

AiM 23 Pin Plug and Pins (1.2 Strada MXS, MXP, MXG)

The AiM 23 pin plug and pins are ideal for the MX Strada 1.2 loggers if you're in need of a replacement or just to keep them as spares.

Key Features :

AiM 14 Pin Plug and Pins (1.2 Strada MXS, MXP, MXG)

The AiM 14 pin plug and pins are ideal if you need a replacement or to keep them as spares.

Suitable for MX Series Strada 1.2

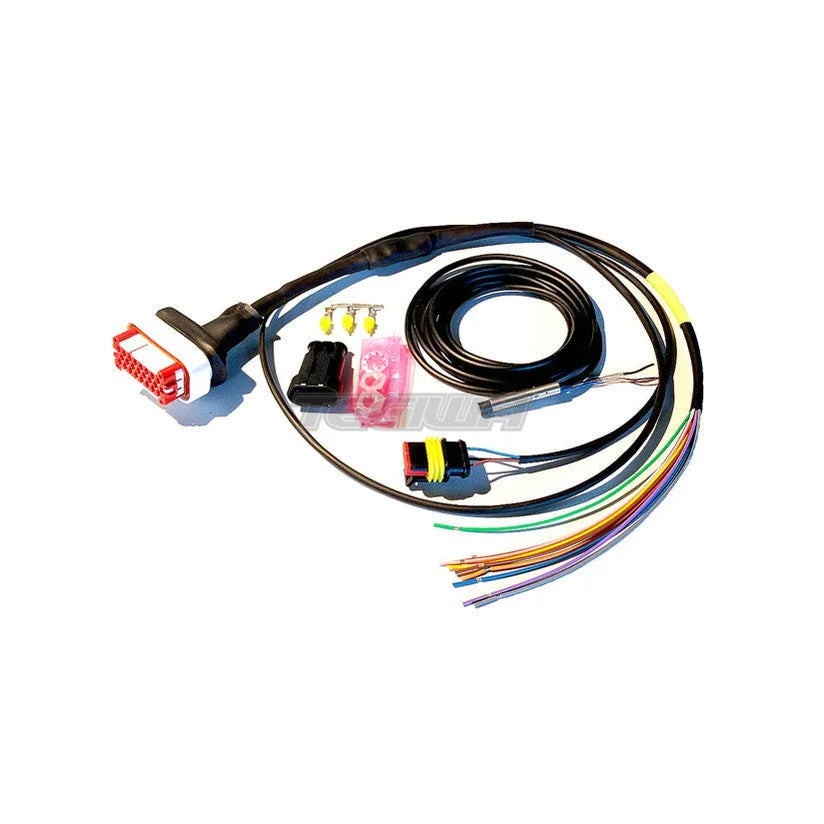

AiM Strada 1.2 IVA Vehicle Integration Loom MXS, MXP, MXG

The AiM pre-wired Strada 1.2 23 pins IVA Integration loom is a dedicated wiring loom to integrate with our IVA dash displays, offering a simple installation to your vehicle electrics.

Key Features :

AiM Strada 1.2 IVA Vehicle Integration Loom MXS, MXP, MXG

The AiM Strada 1.2 23 pin IVA loom with a wheel speed sensor is a dedicated wiring loom made to integrate with the IVA dash displays. The loom will offer a simple installation for your vehicle electrics.

Allowing the perfect solution for kit car builders, the system will allow you to monitor:

All ECU information and Odometer
Oil Temperature
Engine Temperature
Fuel Levels
Side Lights
Hazards
Front Fog
Rear Fog
Parking Brake
Main Beam
Dipped Beam
LH Indicator
RH Indicator

A fuel level sender can work with the AiM Channel Expansion unit with a suitable patch lead.

The IVA loom has a pull-up resistor incorporated, which is unnecessary with the fuel level sender and can cause inconsistent readings.
