The Infrared Belt Temperature System reads the belt temperature and battery voltage.

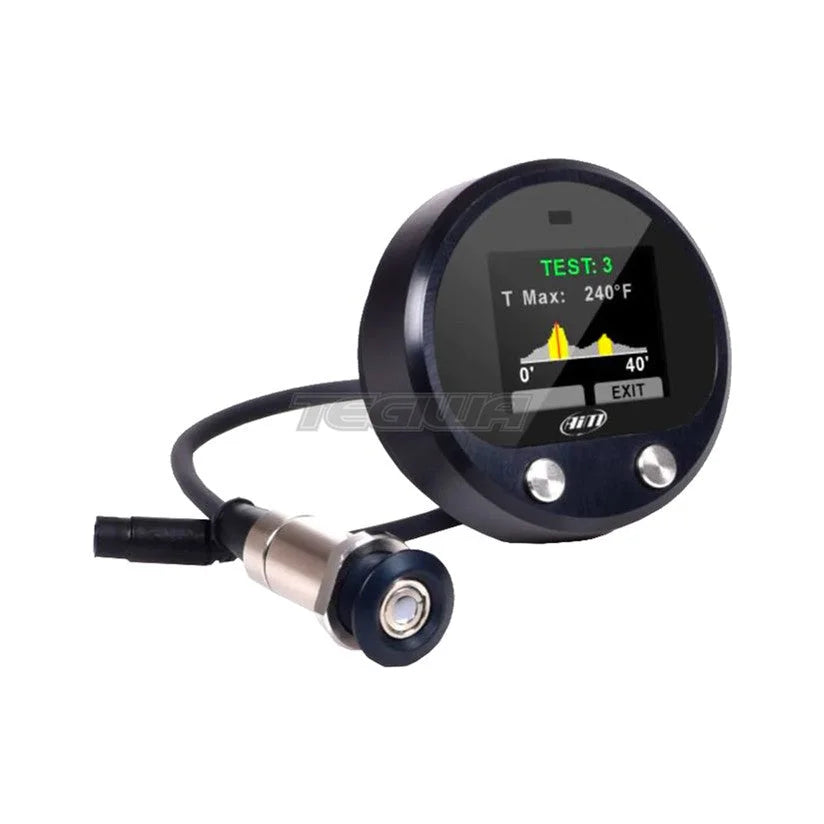

Infrared Belt Temperature System
The AiM infrared belt temperature system has been designed for you to choose between a single point sensor that provides accurate belt temperature readings to the gauge display.
Designed for the off-road circuit, UTV Racing is a demanding activity which can stress every component of the vehicle.
The single point temperature sensor shows the average temperature of the controlled area and the multi-point temperature sensor will divide the area into 16 small portions and send the values every tenth of a second to the gauge via the CAN communication line.
This information is displayed on the gauge with colours indicating different temperatures.

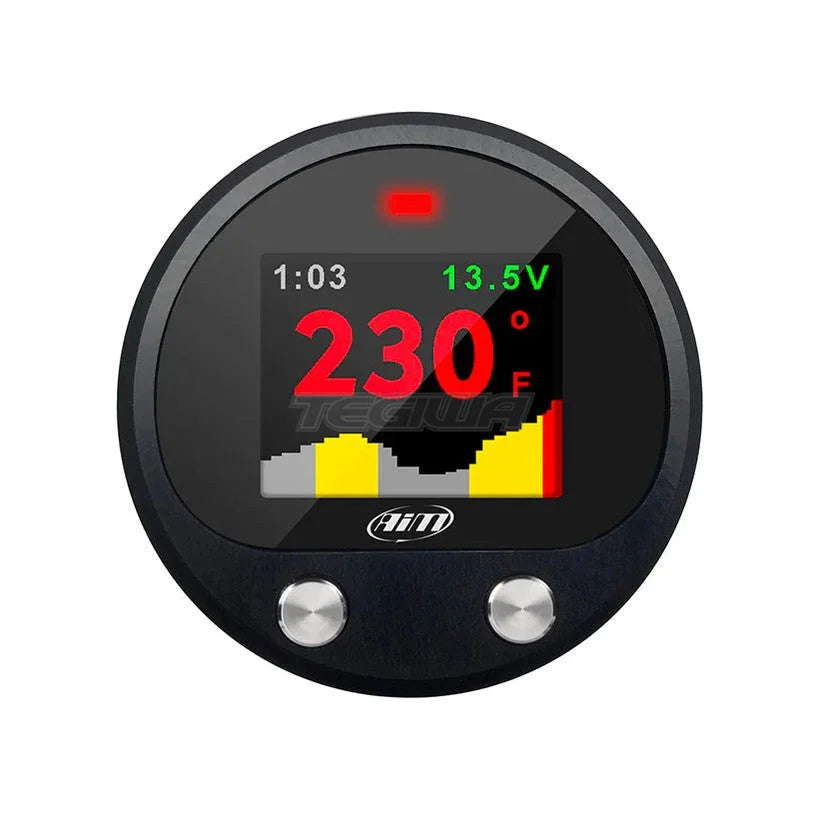

What the Gauge Shows
The temperature value is constantly shown and recorded in the internal memory every ten seconds, in order to be evaluated after the test.
The external supply voltage.
Temperature, No more fear
It is possible to set two temperature thresholds. One for a warning, when the temperature rises above the alarm level it will display in yellow and a warning message will be seen at the top of the display. When the temperature rises above the alarm level it will display in red, a message will be seen at the top of the display and a red LED will start blinking.
The gauge will also read and display the external supply voltage. The voltage will generally be shown in green but like the temperature, you can set warning and alarm thresholds.
