The AIM Motorsport GS-Dash is a compact, flexible and fully configurable graphical display, showing data sampled by the new generation data loggers, EVO4S and EVO5. Its small dimension makes it particularly suitable for small cockpit installation (i.e. Formula cars, kit cars and motorbikes). Manufactured completely in aluminium, with edge-to-edge glass and metallic pushbuttons, GS-Dash is robust and fully waterproof to IP67 standards.
With GS-Dash you keep constantly under control with lap times and all values coming from your vehicle's ECU, from the three-axial accelerometer and from the GPS built into the EVO4S / EVO5 data logger.

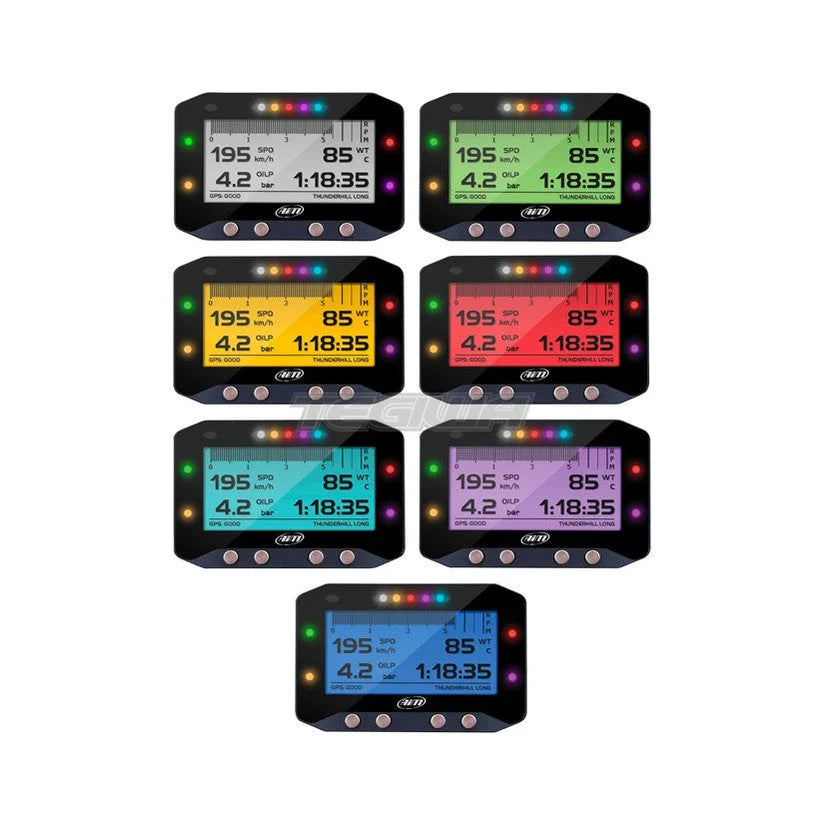

To maximise readability of data, you need plenty of room. That is why the GS-Dash features a wide 268x128 pixel graphical display. The screen can be backlighted in one of the seven available colours. The incorporated light sensor makes brightness and contrast ideal in all light conditions.
- The GS-Dash swaps among pages showing lap times and data in a 100% customisable way: just choose your data and create your pages displaying up to 8 fields on each. The "RPM and Lap Time" page layout is also available to display RPM Graph, Lap Time and two channels of your choice.
- Lap times. You can visualize the rolling time, or static or predictive lap time (as an absolute value or as a difference vs. the Best Lap).
- Five RGB shift lights can be individually configured for each gear, choosing LED colour and RPM threshold values for their activation.
- Alarms are managed in a very flexible way: you can choose the situation that generates the alarm, the LED behaviour (blinking frequency and colour) when the alarm appears and the conditions for its switch-off. A warning message can also be shown.
- A key-data summary is available at the end of each session: the three best laps of the session with their times, min/max speed and min/max RPMs. On the following pages you can also see a list of all the laps of the session.
- Configuration of shift lights, alarms and customised data pages is intuitive and immediate using the dedicated and included Race Studio 3 software with just a few keyboard clicks.
Please note: This is a display only, and MUST be connected to one of the following; EVO4S data logger or EVO5 data logger.
