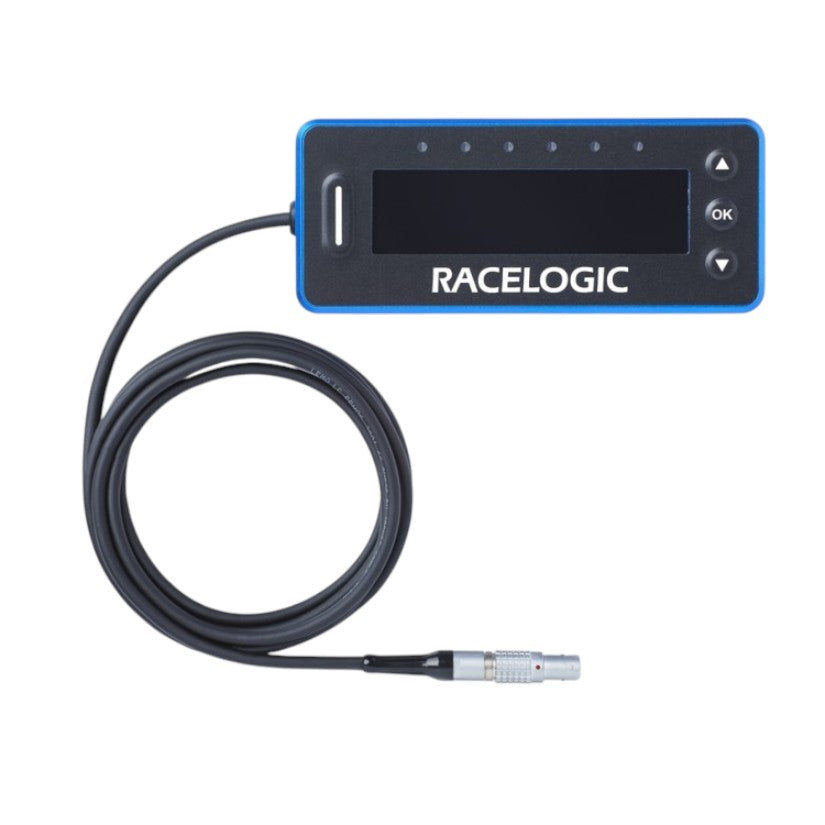

Racelogic VBOX Pit Lane Timer Secondary OLED Display
The OLED Pit Display acts as a secondary display for the VBOX Pit Lane Timer, mirroring the stationary countdown so the information is directly available to the pit crew. In endurance racing, where the crew are responsible for safely releasing the car, that removes any ambiguity about when the driver should go.
It mounts to the dash or side window facing the pit crew and shows the remaining time in the pit lane in real time. An internal accelerometer flips the screen to match how it's mounted, and the display can invert its colours or render the font as a high contrast outline to suit the lighting.
Housed in a splash proof IP64 case, it connects to the coms port on the Pit Lane Timer via an attached 3.5m flying lead, with CAN termination built in.
Key Features
- Mirrors the stationary countdown from the VBOX Pit Lane Timer
- Prompts the pit crew when to release the car
- Helps avoid pit stop penalties and minimise time in the pits
- Auto-rotating display with invert and outline font modes
- Three button operation to scroll screens and enter menus
- Built-in CAN termination
- Motorsport standard Lemo connectors
- Multiple mounting options including 1/4-20 UNC
- Free lifetime customer support
Specifications
- IP rating: IP64
- Operating temperature: -40 to +70°C
- Input voltage: 6-30V DC
- Power consumption: under 2W
- Dimensions: 120 x 50 x 19.5mm, excluding cable
- Weight: 204g, including attached cable
- Connection: 3.5m flying lead to the Pit Lane Timer coms port
Please Note
- Requires a VBOX Pit Lane Timer running firmware version 1.1.22 or later
- A standard OLED display cannot be used in place of this OLED Pit Display
Compatible With
- Racelogic VBOX Pit Lane Timer
