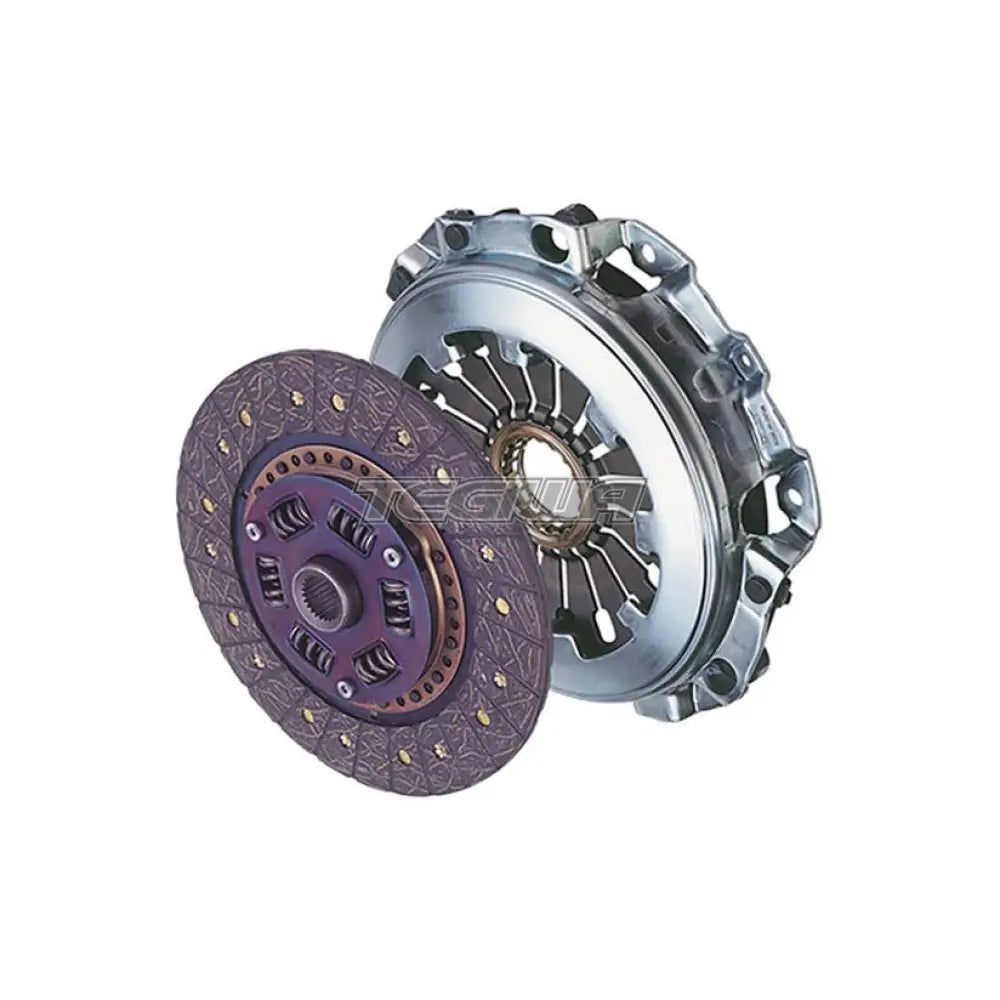

Exedy Single Series Stage 1 Organic Clutch Toyota Corolla ZZE123 02-07
- PartNo: TK02H840
- PartNoDesc: Stage 1 Organic
- Outer Diameter (mm): 215
- Supplementary Article Info: With bearing(s)
- Disc Facing: Organic
- Pull Type:
- Push Type: Yes
- Sprung Centre Disc?: Yes
- Torque @ Flywheel: 200 lb.ft./270 Nm
- Torque @ Wheels: 160 lb.ft./220 Nm
- Clamp Load (N): 6900
- Number of Paddles:
Precision, strength and incomparable quality.
Designed for lightly modified vehicles, the Stage 1 Organic clutch incorporates friction material with high heat-resistance properties and high strength fibres making it an ideal clutch for road, circuit or drifting.
Main Benefits
- Ensures the clutch engagement feeling is the same as the standard clutch.
- Up to a 30% increase in torque capacity over standard.
- Approximately 40% higher clamp load than the standard clutch.
- Industry leading performance friction, achieving the highest fade recovery, the highest RPM burst test results, the best heat resistance and the lowest wear rate in the performance aftermarket.
Suitable For
- Road
- Track Day
- Circuit Racing
- Drifting
Clutch Cover
Single Series clutch covers are designed to achieve a clamping load that is approximately 40% higher than the genuine part enabling a higher torque capacity. Ductile material is used for all pressure plates and high burst strength can be achieved in all temperature ranges.
Note: Single Series Clutch Kits with HD in the middle of a kit reference denote that the cover has a higher clamp load. e.g. Mitsubishi EVO Organic kit: MK04HD601
Clutch Disc
An ultra fibre friction facing is used which has high heat resistance and high burst strength characteristics. No steel back is required which can cause RPM "lock-out" and/or synchro damage. Superior in shift operations and half-engagement feel, this clutch disc is recommended for any motorsport or modified vehicle use.
The performance of a standard organic friction material usually suffers after slipping. Accordingly, EXEDY has developed the ultra fibre material. If fade is experienced it will recover after a short cooling down period.
Note: There are two variations of Organic kits for some models. For example, the Organic kit FK01H601 for the Subaru Impreza has a 6 spring disc and the kit FK01H1601 has a 4 spring disc. The 6 spring disc is best suited for track day or motorsport use, whereas the 4 spring disc is ideal for everyday driving as it delivers a smooth engagement and disengagement experience.
Make | Model | Model Code | Engine Size | Engine Code | StartEndDate | Number of Gears | PartNo |
---|---|---|---|---|---|---|---|
LOTUS | ELISE | S2 | 1.8 | 1ZZ-FE | 10/2003->12/2011 | TK02H840 | |
LOTUS | ELISE | S2 | 1.8 | 2ZZ-GE | 11/2004->12/2011 | TK02H840 | |
LOTUS | EXIGE | S1 | 1.8 | 2ZZ-GE | 05/2000->07/2004 | TK02H840 | |
TOYOTA | CELICA | ZZT23 | 1.8 | 1ZZ-FE | 08/1999->07/2005 | TK02H840 | |
TOYOTA | CELICA | ZZT23 | 1.8 | 2ZZ-GE | 08/1999->09/2005 | TK02H840 | |
TOYOTA | COROLLA | ZZE123 | 1.8 | 2ZZ-GE | 01/2002->02/2007 | 6MT | TK02H840 |
TOYOTA | MR-2 | ZZW30 | 1.8 | 1ZZ-FE | 10/1999->06/2007 | TK02H840 |
£361.76
ETA: 2-5 Working Days From Order Date
